| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| TVS | |
| Quad | |
| Uni-Directional | |
| 4 | |
| 6 | |
| 6.8 | |
| 20 | |
| 70 | |
| 15 | |
| 1 | |
| 1000 | |
| -55 | |
| 125 | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1.65(Max) |
| Verpackungsbreite | 3.9 |
| Verpackungslänge | 9.9 |
| Leiterplatte geändert | 16 |
| Standard-Verpackungsname | SO |
| Lieferantenverpackung | SOIC N |
| 16 | |
| Leitungsform | Gull-wing |

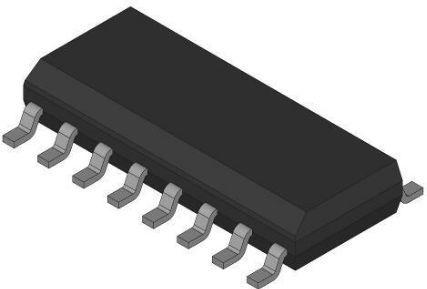

Protect your critical electronic applications from sudden overvoltage conditions with this LC04-6.TBT TVS diode from Semtech. Its maximum leakage current is 15 μA. Its test current is 1 mA. Its peak pulse power dissipation is 1000 W. This device's maximum clamping voltage is 20 V and minimum breakdown voltage is 6.8 V. This TVS diode has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
| EDA / CAD Models |
