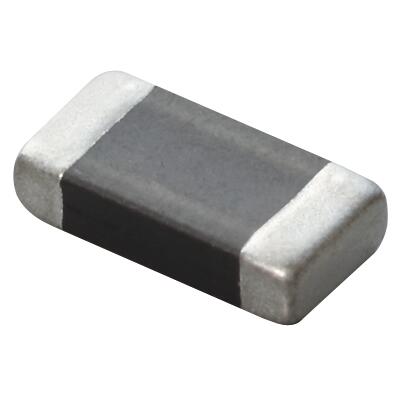

Murata ManufacturingLQM31PN1R0M00LInduktionsspule, Oberflächenmontage
Inductor Power Chip Shielded Multi-Layer 1uH 20% 1MHz Ferrite 1.2A 0.15Ohm DCR 1206 T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.40.00 | |
| Automotive | No |
| PPAP | No |
| Power Chip | |
| Multi-Layer | |
| Shielded | |
| Ferrite | |
| 1u | |
| 20% | |
| 1M | |
| 1.2 | |
| 0.15 | |
| 60M | |
| 2 | |
| 1206 | |
| -55 | |
| 125 | |
| Tape and Reel | |
| 3.4 | |
| Surface Mount | |
| 1.8 | |
| 0.95 |
An ideal space-saving electronic component is this power chip LQM31PN1R0M00L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 1.2 A with a maximum resistance of 150m Ohm. This device utilizes multi-layer technology. This product is 3.4 mm long, 0.95 mm tall and 1.8 mm deep. It has an inductance of 1u H. It has a tolerance of 20%. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 60M Hz.
