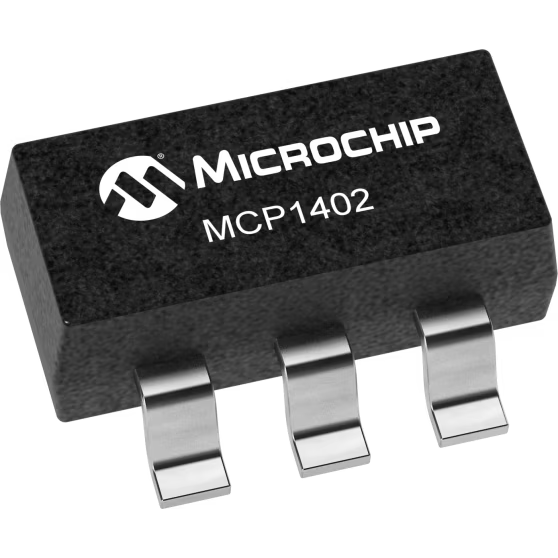

Microchip TechnologyMCP1402T-E/OTGate- und Leistungstreibern
Driver 0.5A 1-OUT Low Side Non-Inv 5-Pin SOT-23 T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Low Side | |
| Non-Inverting | |
| 1 | |
| IGBT|MOSFET | |
| 1 | |
| 25 | |
| 20 | |
| 40 | |
| CMOS|TTL | |
| 4.5 | |
| 18 | |
| 1.1 | |
| 1.3 | |
| 1.5 | |
| 0.5(Typ) | |
| 10|12 | |
| 390 | |
| -40 | |
| 125 | |
| 40 | |
| 40 | |
| Yes | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1.3(Max) mm |
| Verpackungsbreite | 1.6 mm |
| Verpackungslänge | 2.9 mm |
| Leiterplatte geändert | 5 |
| Standard-Verpackungsname | SOT |
| Lieferantenverpackung | SOT-23 |
| 5 | |
| Leitungsform | Gull-wing |
Never worry about your high power transistor not turning on and off by using this MCP1402T-E/OT power driver by Microchip Technology. This device has a maximum power dissipation of 390 mW. Its maximum power dissipation is 390 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a minimum operating supply voltage of 4.5 V and a maximum of 18 V. This gate driver has an operating temperature range of -40 °C to 125 °C.
