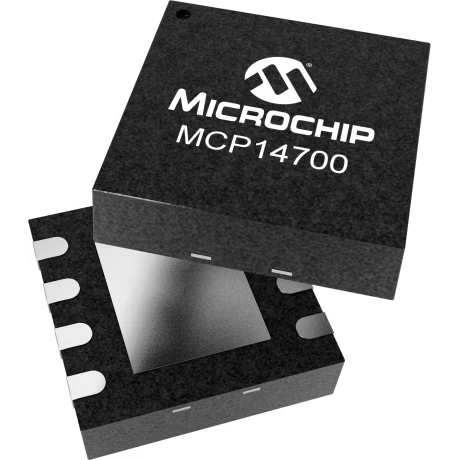

Microchip TechnologyMCP14700T-E/MFGate- und Leistungstreibern
Driver 3.5A 2-OUT High Side/Low Side Non-Inv 8-Pin DFN EP T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | Yes |
| PPAP | Unknown |
| High Side|Low Side | |
| Non-Inverting | |
| 2 | |
| Independent | |
| MOSFET | |
| 2 | |
| 10(Typ) | |
| 10(Typ) | |
| 36 | |
| CMOS|TTL | |
| 4.5 | |
| 5 | |
| 5.5 | |
| 0.045(Typ) | |
| 1.2 | |
| 1.6 | |
| 3.5(Typ) | |
| 1 | |
| -40 | |
| 125 | |
| Extended | |
| Synchronous|Undervoltage Lockout | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 0.88 mm |
| Verpackungsbreite | 3 mm |
| Verpackungslänge | 3 mm |
| Leiterplatte geändert | 8 |
| Standard-Verpackungsname | DFN |
| Lieferantenverpackung | DFN EP |
| 8 |
Working with high voltage decision making circuits? This MCP14700T-E/MF power driver by Microchip Technology will properly help switch states. Its typical operating supply voltage is 5 V. This device has a maximum propagation delay time of 36 ns. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This gate driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
