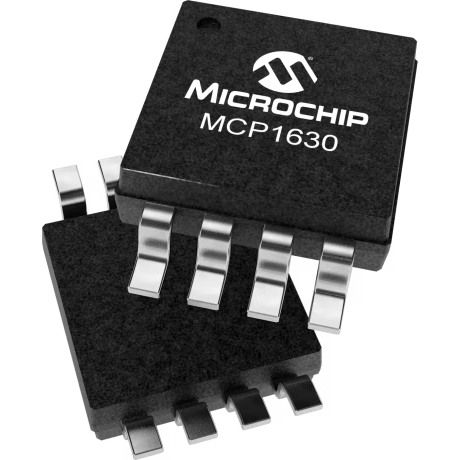

Microchip TechnologyMCP1630-E/MSStrommodus, PWM-Controllern
Current Mode PWM Controller 1000kHz 8-Pin MSOP Tube Automotive AEC-Q100
| Compliant | |
| EAR99 | |
| Active | |
| 8542.31.00.30 | |
| Automotive | Yes |
| PPAP | Yes |
| Current Mode PWM Controller | |
| Current/Voltage Mode PWM Controller | |
| Boost|Buck|Flyback | |
| 1 | |
| 1000 | |
| 0(Min) | |
| 5.9 | |
| 6.2 | |
| 6 | |
| No | |
| No | |
| No | |
| -40 | |
| 125 | |
| Extended | |
| Tube | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 0.85 mm |
| Verpackungsbreite | 3 mm |
| Verpackungslänge | 3 mm |
| Leiterplatte geändert | 8 |
| Standard-Verpackungsname | SO |
| Lieferantenverpackung | MSOP |
| 8 | |
| Leitungsform | Gull-wing |
Never worry about explosions or smoking components with this MCP1630-E/MS current controller from Microchip Technology. It has single PWM output. This current mode controller supports boost|buck|flyback topology. Its switching regulator has a frequency of 1000 kHz. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This current mode controller's maximum duty cycle is 0(Min) %. This current mode controller has an operating temperature range of -40 °C to 125 °C. This device has a maximum of 6 V.
