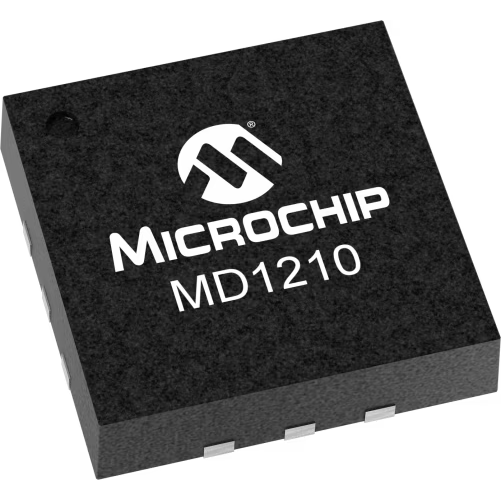

Microchip TechnologyMD1210K6-GGate- und Leistungstreibern
Driver 2A 2-OUT High Side/Low Side Inv 12-Pin QFN EP T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| High Side|Low Side | |
| Inverting | |
| 2 | |
| Dependent | |
| 2 | |
| 6(Typ) | |
| 6(Typ) | |
| 7(Typ) | |
| CMOS | |
| 4.5 | |
| 13 | |
| 6.6(Typ) | |
| 0 to 0.3 | |
| 5(Max) | |
| 2(Typ) | |
| 12.5(Max) | |
| -20 | |
| 85 | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 0.9 |
| Verpackungsbreite | 4 |
| Verpackungslänge | 4 |
| Leiterplatte geändert | 12 |
| Standard-Verpackungsname | QFN |
| Lieferantenverpackung | QFN EP |
| 12 | |
| Leitungsform | No Lead |
Say goodbye to transistors not being provided proper biasing current by using this MD1210K6-G power driver by Microchip Technology. This device has a maximum propagation delay time of 7(typ) ns. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This gate driver has a minimum operating temperature of -20 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 4.5 V and a maximum of 13 V.
