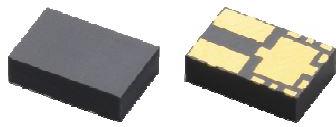

Murata Power SolutionsMYRGM080200C41RADC/DC-Wandler und Spannungsreglermodul

The PicoBK™ low-power offering integrates an inductor with a control IC for applications where space is at a premium, such as with wearable devices. These very small modules have low quiescent current which is preferred for battery powered applications. Products include 0.5A, 1.0A, 1.5A and 2.0A models.

PicoBK Features & Benefits:

• Ultra small packaging size (2.5mm x 2.0mm x 1.0mm)
• Optimized single output voltages for PoL and Battery applications
• Input voltage range | Single output voltages
  • 3.0V to 18V  | 1.0V to 15V (0.5A)
  • 2.5V to 5.5V | 0.8V to 3.6V (1.0A-1.5A)
  • 2.7V to 5.5V | 0.8V to 0.9V (2.0A)
• Low Quiescent Current
• Higher Efficiency and Improved Thermal Performance
• Improved EMI performance

PicoBK Applications:

PicoBK Mechanical Detail:

MYRGP series (1.0A)

• Dim: 2.5 x 2.0 x 1.0 mm
• Low EMI, Low Profile
• Pocket Coil type

MYRGC series (0.5A)

• Dim: 3.0 x 3.0 x 1.7 mm
• High PD, Low EMI
• Cool Post type

MYRGM series (1.5A - 2.0A)

• Dim: 3.2 x 2.5 x 1.0 mm
• High Current, Low Profile
• Multiple Type
