10-25% Rabatt

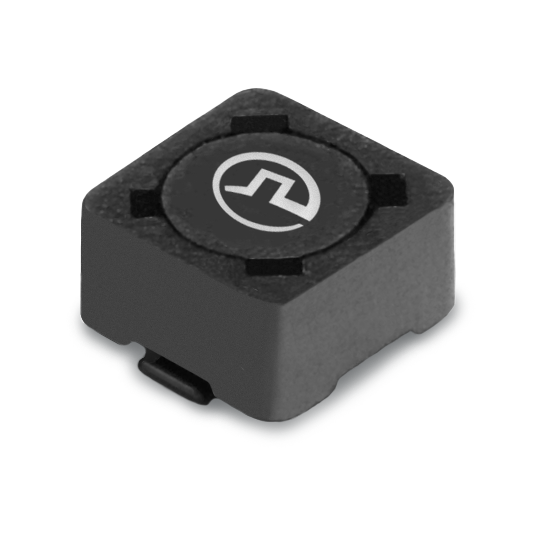

Pulse Electronics CorporationP1167.542NLTInduktionsspule, Oberflächenmontage
Inductor Power Shielded Wirewound 5.4uH/3.5uH 30% 100KHz 2.5A 0.033Ohm DCR T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| Power | |
| Wirewound | |
| Shielded | |
| 5.4u(OCL)/3.5u | |
| 30% | |
| 100K | |
| 2.5 | |
| 2.7 | |
| 0.033 | |
| >40M | |
| 2 | |
| -40 | |
| 130 | |
| Tape and Reel | |
| 7.54 | |
| Surface Mount | |
| 7.54 | |
| 4.5 |
This power P1167.542NLT surface mount inductor from Pulse is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 2.5 A with a maximum resistance of 33m Ohm. This product is 7.54 mm long, 4.5 mm tall and 7.54 mm deep. It has an inductance of 3.5u/5.4u(Rated) H. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is >40M Hz.
| EDA / CAD Models |
