Pulse Electronics CorporationP1174.473NLTInduktionsspule, Oberflächenmontage

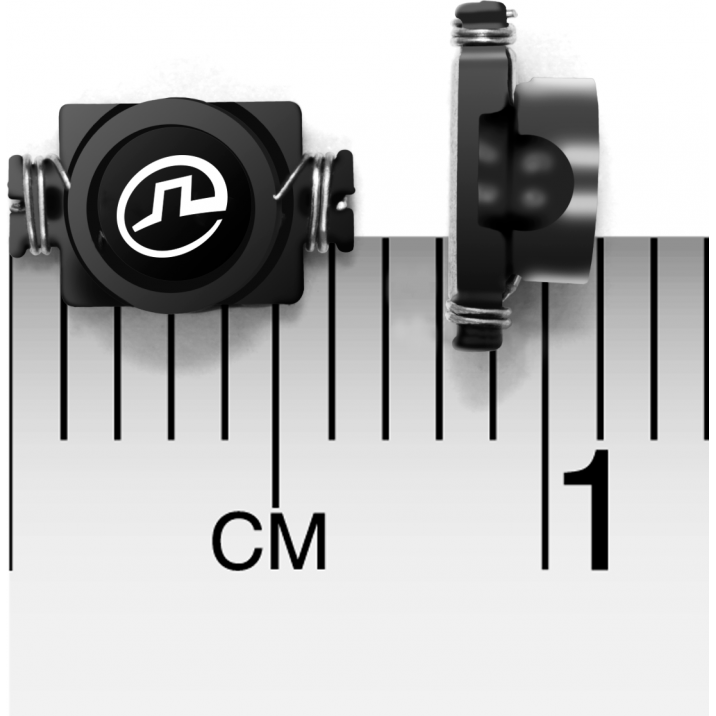

P1174.473NLT Inductor Surface Mount Power Shielded Wirewound 47uH/32uH 100KHz 0.35A 0.23Ohm Automotive - Arrow.com
| Compliant | |
| EAR99 | |
| 8504.50.40.00 | |
| Automotive | Yes |
| PPAP | Unknown |
| Power | |
| Wirewound | |
| Shielded | |
| 47u(OCL)/32u | |
| 20% | |
| 100K | |
| 0.35 | |
| 0.35 | |
| 0.23 | |
| 14M | |
| 2 | |
| -40 | |
| 130 | |
| Tape and Reel | |
| 6.73 | |
| Surface Mount | |
| 4.45 | |
| 2.79 |
Save valuable space on a PCB with this power P1174.473NLT surface mount inductor from Pulse. This SMD inductor has an operating temperature range of -40 °C to 130 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 6.73 mm long, 2.79 mm tall and 4.45 mm deep. This SMD inductor has a maximum DC current of 350m A with a maximum resistance of 230m Ohm. It has an inductance of 32u/47u(Rated) H. This device utilizes wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 14M Hz. It has a tolerance of 20%.
