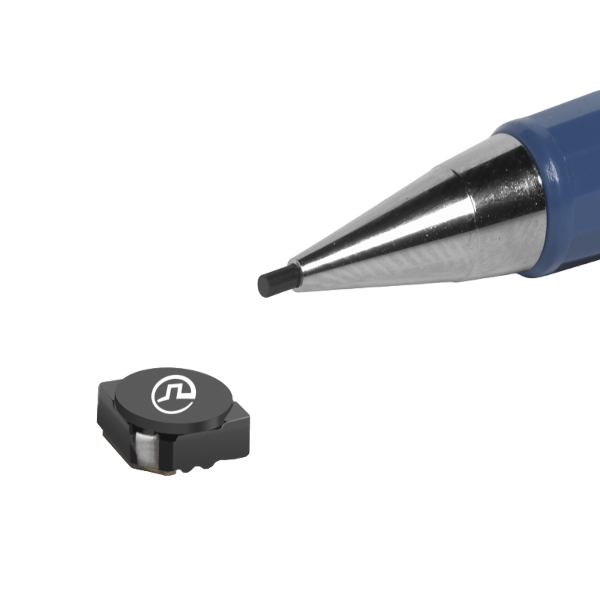

Pulse Electronics CorporationPG0087.222NLTInduktionsspule, Oberflächenmontage
Inductor Power Shielded Wirewound 2.2uH/1.9uH 20% 100KHz 2.2A 0.045Ohm DCR 2424 T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.40.00 | |
| Automotive | No |
| PPAP | No |
| Power | |
| Wirewound | |
| Shielded | |
| 2.2u(OCL)/1.9u | |
| 20% | |
| 100K | |
| 2.2 | |
| 2.2 | |
| 0.045 | |
| >40M | |
| 2 | |
| 2424 | |
| -40 | |
| 130 | |
| Tape and Reel | |
| 6.2 | |
| Surface Mount | |
| 6.2 | |
| 2 |
Use this power PG0087.222NLT surface mount inductor from Pulse to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its test frequency is 100K Hz, while its minimum self-resonant frequency is >40M Hz. It has an inductance of 1.9u/2.2u(Rated) H. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 2.2 A with a maximum resistance of 45m Ohm. This product is 6.2 mm long, 2 mm tall and 6.2 mm deep. This device is made with wirewound technology.
