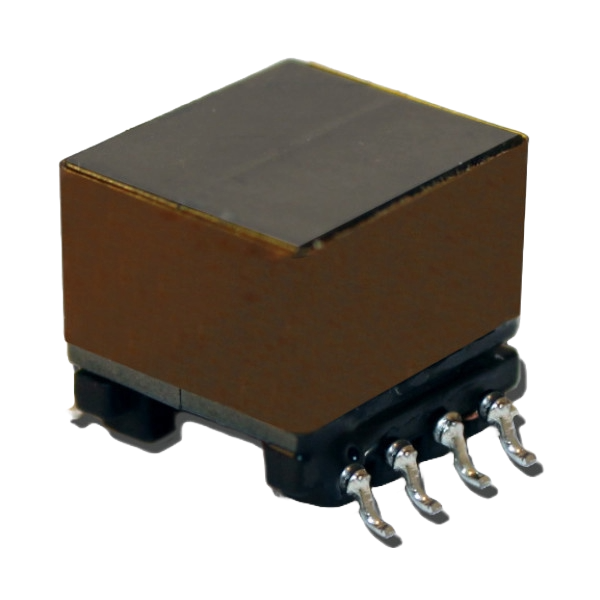

Pulse Electronics CorporationPH9185.034NLTTransformator
Power Transformer 3CT:4CT 5000Vrms 6 Terminal Gull Wing SMD
| Compliant | |
| EAR99 | |
| Active | |
| PH9185.034NLT | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Push Pull Transformer | |
| 3CT:4CT | |
| Dual | |
| Dual | |
| 750 | |
| 0.5 | |
| 0.75 | |
| 5000Vrms | |
| Gull Wing | |
| Surface Mount | |
| 6 | |
| -40 | |
| 125 | |
| SMD | |
| Tape and Reel | |
| 10 | |
| 12.5 | |
| 13 |
Use this PH9185.034NLT switching transformer from Pulse for galvanic isolation and increased safety in your electronic circuits. This switching transformer has an operating temperature range of -40 °C to 125 °C. It has 6 terminals. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 10 mm long, 12.5 mm tall and 13 mm deep. The maximum DCR on the primary side is 0.5 Ohm. It has a turn ratio of 3:4. It also has a switching mode transformer.
