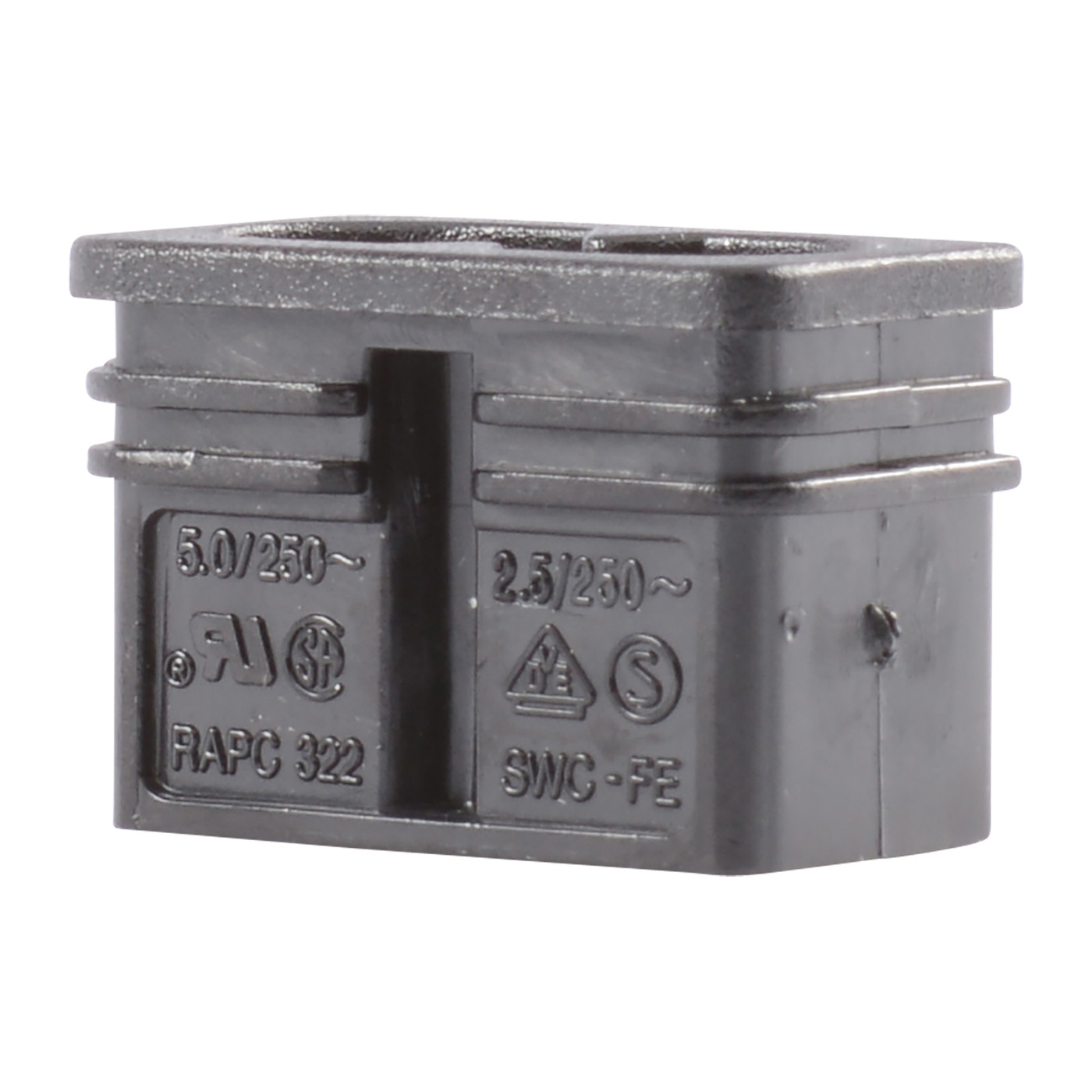

SwitchcraftRAPC322XSteckverbinder
Conn Power PL 2 POS 8.5mm Solder RA Thru-Hole 2 Terminal 1 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8538.90.81.80 | |
| Automotive | No |
| PPAP | No |
| Power | |
| PL | |
| 2 | |
| 2 | |
| Solder | |
| 8.5 | |
| Right Angle | |
| 5 | |
| 250V | |
| -55 | |
| 65 | |
| Black | |
| 21 | |
| 14.65 | |
| 13 | |
| Through Hole | |
| Nickel | |
| Copper Alloy |
This RAPC322X power connector from Switchcraft is ideal for powering up your circuit. This PIN connector's 2 contacts that are made out of copper alloy and plated with nickel. It has a maximum voltage rating of 250 V. It has a right angle body orientation. Its pitch is 8.5 mm. This connector has a single port. This device has a maximum current rating of 5 A. RAPC322X is housed in thermoplastic. This power connector has a minimum operating temperature of -55 °C and a maximum of 65 °C. Its 2 terminals use the solder termination method. This product is 21 mm long, 13 mm tall and 14.65 mm deep.
| EDA / CAD Models |
