| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Fixed | |
| Series | |
| 0.05% | |
| 3ppm/°C | |
| 75ppm/mA | |
| 215ppm/V | |
| 2.5 | |
| 18 | |
| 7 | |
| -55 | |
| 210 | |
| Tube | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1.98(Max) |
| Verpackungsbreite | 5.89(Max) |
| Verpackungslänge | 7.34(Max) |
| Leiterplatte geändert | 8 |
| Standard-Verpackungsname | FPAK |
| Lieferantenverpackung | CFPAK |
| 8 | |
| Leitungsform | Flat |

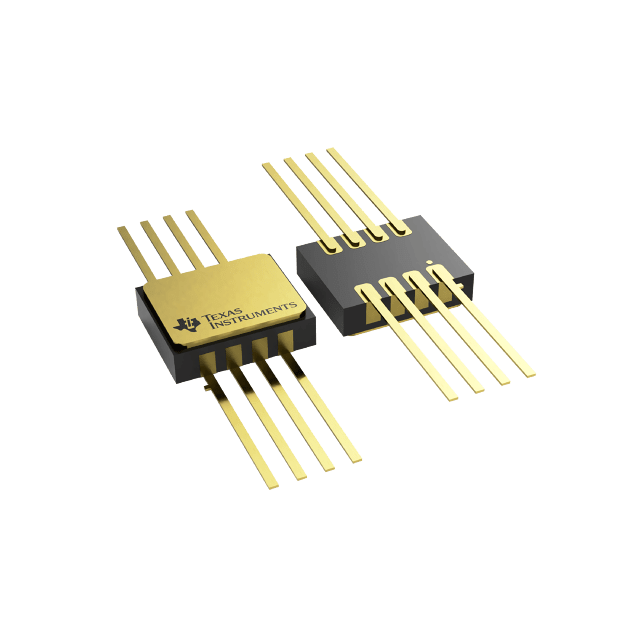

Even in the event of large power supply variations, this REF5025SHKJ voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With an output that has a voltage of 2.5 V, this is power management at its best. With a voltage no larger than 18 V, this will supply sufficient power to your circuit. It has an initial accuracy of 0.05%. This voltage reference circuit supports series topology. Using a load regulation of 75ppm/mA and line regulation of 215ppm/V is needed for a programmable DC power supply. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage reference circuit has a minimum operating temperature of -55 °C and a maximum of 210 °C. It runs with a maximum temperature coefficient of 55ppm/°C.
