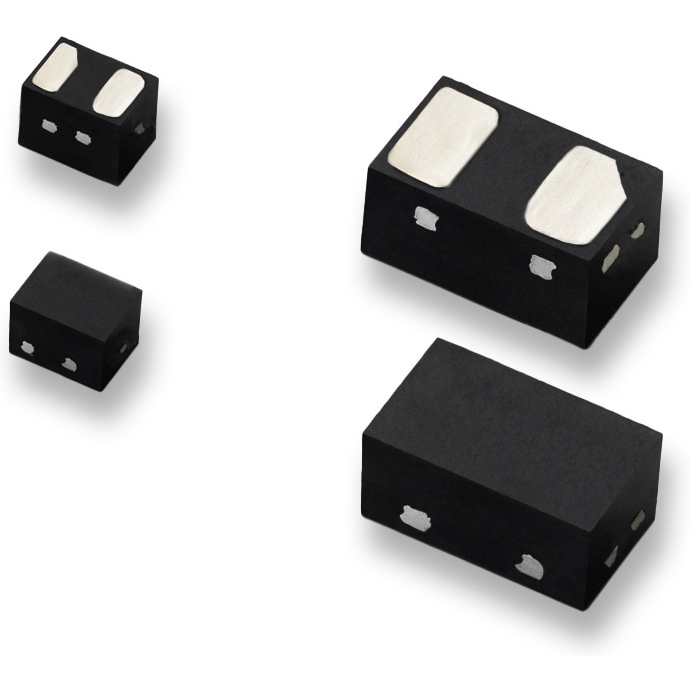

LittelfuseRF2945-000ESE-Entstörer
ESD Suppressor TVS Bi-Dir 7V 2-Pin DFN T/R Automotive AEC-Q101
| Compliant | |
| EAR99 | |
| Active | |
| 8535.10.00.40 | |
| Automotive | Yes |
| PPAP | Yes |
| TVS | |
| Single | |
| Bi-Directional | |
| 1 | |
| 7 | |
| 10(Typ)@8/20us | |
| 2@8/20us | |
| 0.05 | |
| 1 | |
| 0.13 | |
| -55 | |
| 125 | |
| Automotive | |
| Tape and Reel | |
| No | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 0.38(Max) mm |
| Verpackungsbreite | 0.6 mm |
| Verpackungslänge | 1 mm |
| Leiterplatte geändert | 2 |
| Standard-Verpackungsname | DFN |
| Lieferantenverpackung | DFN |
| 2 | |
| Leitungsform | No Lead |
This diode array RF2945-000 ESD protection device from Littelfuse, will prevent from a costly fix if your system is to be hit with electrostatic discharge. This device's maximum clamping voltage is 10 V. This ESD diode has a maximum ESD protection device voltage of 20@Air Gap/20@Contact Disc kV. This ESD diode has an operating temperature range of -55 °C to 125 °C. Its capacitance value is 0.12 pF. It is made in a single configuration.
| EDA / CAD Models |
