STMicroelectronicsROBOT-M24LR16E-ARF/Drahtlos-Entwicklungsplatinen und Kits

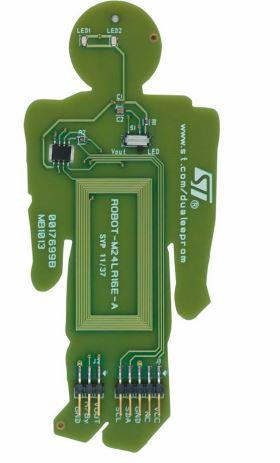

The ROBOT-M24LR16E-A is a ready-to-use PCB that features an M24LR16-R dual interface EEPROM IC connected to an I²C bus and a 20 mm x 40 mm 13.56 MHz etched RF antenna. It also features two LEDs, powered by the M24LR16E-R VOUTpin and an output connector. The ROBOT-M24LR16E-A has three functions: Switch in the “LED” position: the robot demonstrates energy harvesting by powering the LED when a sufficient magnetic field is captured. Switch in the “VOUT” position: the energy captured from the electromagnetic field is used to power an external application through the VOUTpin.
