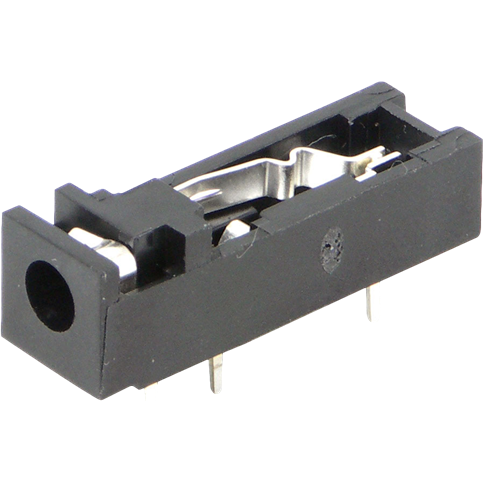

SwitchcraftRTT34B02XSteckverbinder für Audio und Video
Conn Phone Jack F 5 POS Solder RA Thru-Hole 5 Terminal 1 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.30 | |
| Automotive | No |
| PPAP | No |
| Phone Jack | |
| F | |
| 5 | |
| 5 | |
| Solder | |
| Right Angle | |
| -55 | |
| 85 | |
| 9.25 | |
| 30.5 | |
| 10 | |
| Through Hole | |
| Thermoplastic | |
| Gold | |
| Copper Alloy |
Need to connect video and sound in your application? Look no further and use this phone jack RTT34B02X audio and video connector from Switchcraft. This F connector's 5 contacts that are made out of copper alloy and plated with gold. This connector has a single port. It has a female type gender. It has a right angle body orientation. RTT34B02X is housed in thermoplastic. Its 5 terminals use the solder termination method. This product is 9.25 mm long, 10 mm tall and 30.5 mm deep. This part has a minimum operating temperature of -55 °C and a maximum of 85 °C.
