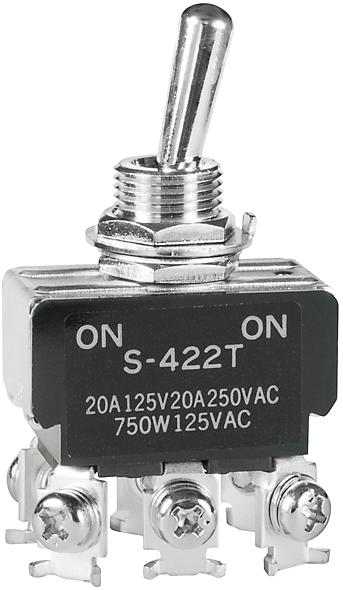

NKK SwitchesS422TKippschalter
Switch Toggle ON None ON DPDT Round Lever Screw Lug 20A 250VAC Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| SVHC | Yes |
| SVHC überschreitet Schwellenwert | Yes |
| Automotive | No |
| PPAP | No |
| Medium/High Capacity | |
| Round Lever | |
| DPDT | |
| ON None ON | |
| Threaded | |
| 20@250VAC | |
| 2000VAC | |
| 1000 | |
| 10 | |
| 15000 | |
| 50000 | |
| Chrome | |
| 17.5 | |
| Panel Mount with Threads | |
| Screw Lug | |
| 6 | |
| 11 | |
| Straight | |
| -10 | |
| 70 | |
| Standard | |
| M12 x 1 | |
| 33.2 | |
| 12 | |
| 19 | |
| 20.1 | |
| 33.2 | |
| 60.6 |
This compact medium/high capacity S422T toggle switch from NKK Switches makes it possible to turn on and off certain parts of your circuits. This device has a maximum current rating of 20 A @ 250VAC. It has a DPDT configuration. This toggle switch has an operating temperature range of -10 °C to 70 °C. The S422T toggle switch has a screw lug termination style. This product is 60.6 mm tall. The maximum AC voltage rating is 250 VAC.
