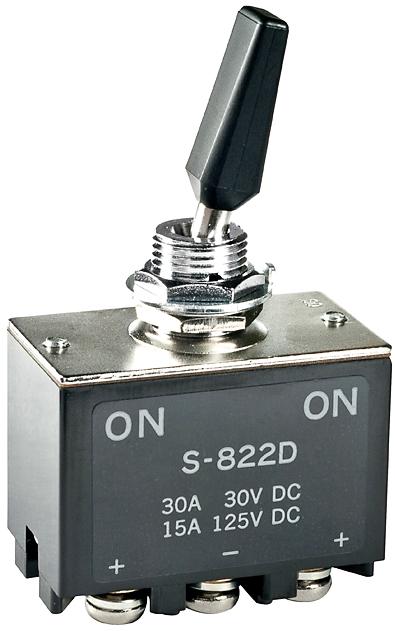

NKK SwitchesS822DKippschalter
Switch Toggle ON None ON DPDT Flat Lever Screw Lug 30A 250VDC Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| SVHC | Yes |
| SVHC überschreitet Schwellenwert | Yes |
| Automotive | No |
| PPAP | No |
| High Capacity | |
| Flat Lever | |
| DPDT | |
| ON None ON | |
| Threaded | |
| 30@48VDC | |
| 2000VAC | |
| 1000 | |
| 10 | |
| 10000 | |
| 50000 | |
| Chrome | |
| 27 | |
| 2 | |
| 12 | |
| Panel Mount with Threads | |
| Screw Lug | |
| 6 | |
| 12 | |
| Straight | |
| -10 | |
| 70 | |
| Standard | |
| M12 x 1 | |
| 42 | |
| 12 | |
| 24 | |
| 34 | |
| 42 | |
| 24 | |
| 73 |
The high capacity S822D toggle switch from NKK Switches comes with minimal lag when toggling a component of your circuit. It has a DPDT configuration. This device has a maximum current rating of 30 A @ 48VDC. This toggle switch has an operating temperature range of -10 °C to 70 °C. The S822D toggle switch has a screw lug termination style. The maximum DC voltage rating is 250 VDC. This product is 42 mm long, 73 mm tall and 24 mm deep.
