| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| LDO | |
| 1 | |
| Positive | |
| ±2 | |
| Adjustable | |
| 0.5(Min) | |
| 3 | |
| 1.45 | |
| 5.5 | |
| 0.15@500mA|0.25@1A|0.35@1.5A|0.4@2A|0.45@2.5A|0.55@3A|0.5@3A | |
| 0.505 | |
| 0.2%/V(Typ) | |
| 0.25%(Typ) | |
| 3 | |
| 36°C/W | |
| 5.5°C/W | |
| Current Limit|Thermal Protection | |
| -40 | |
| 105 | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1.65(Max) |
| Verpackungsbreite | 3.9 |
| Verpackungslänge | 4.9 |
| Leiterplatte geändert | 8 |
| Standard-Verpackungsname | SO |
| Lieferantenverpackung | SOIC N EP |
| 8 | |
| Leitungsform | Gull-wing |

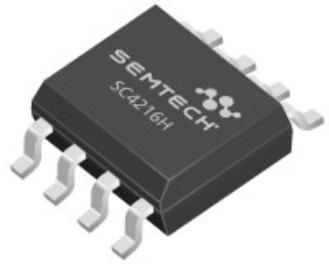

Having trouble maintaining a steady voltage? This LDO SC4216HSETRT linear regulator from Semtech will give you control over the voltage levels of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.075@500mA|0.15@1A|0.25@1.5A|0.3@2A|0.35@2.5A|0.45@3A|0.4@3A V. This voltage regulation device's single output can produce a current up to 3 A. Using the part will provide the power your application needs by requiring a voltage only of 1.45 V and not exceeding a voltage of 5.5 V. With an adjustable output that has a voltage of 0.5(Min) V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.25%(Typ) and line regulation of 0.2%/V(Typ). This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. The maximum dropout voltage is 0.15@500mA|0.25@1A|0.35@1.5A|0.4@2A|0.45@2.5A|0.55@3A|0.5@3A V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 105 °C.
