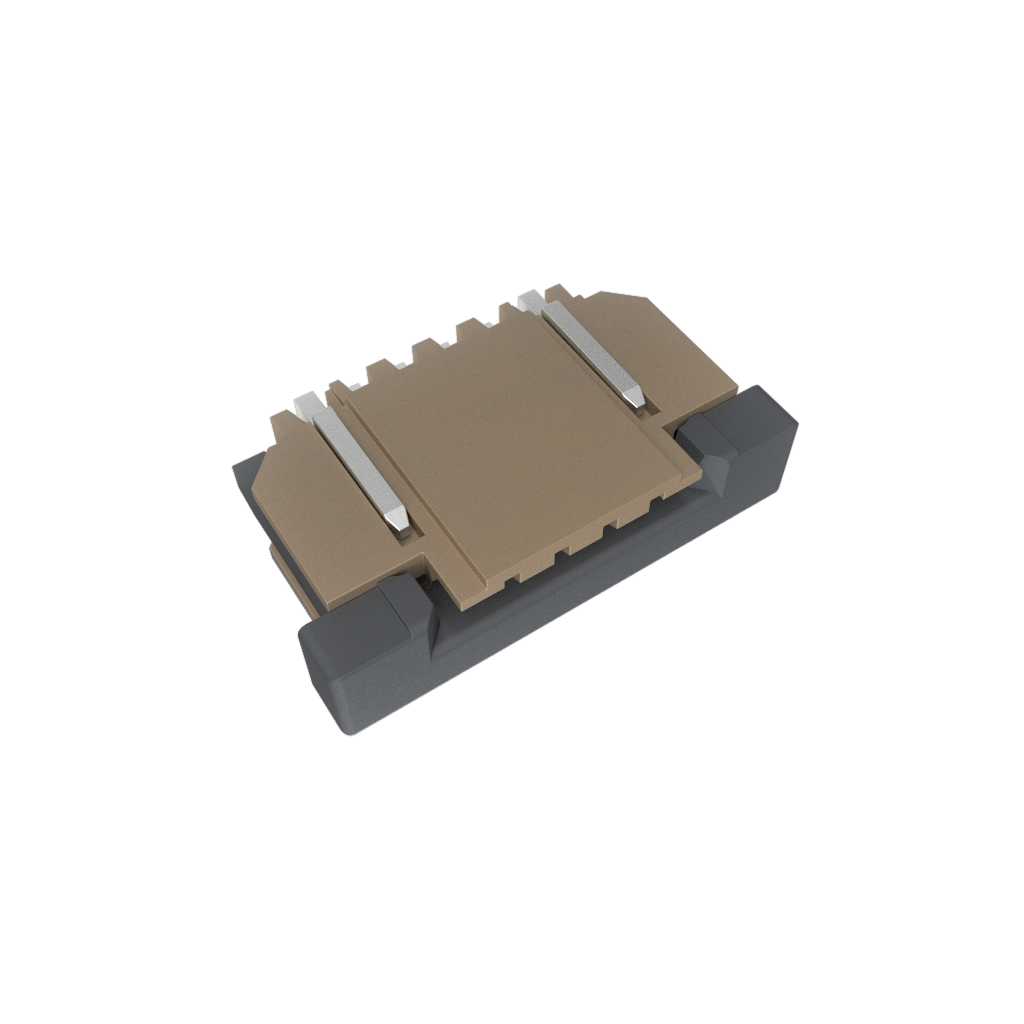

Amphenol Communications SolutionsSFW4R-2STE1LFSteckverbinder, FFC-FPC
1.00mm Flex Connector, SFW-R series, 4 Position, Upper Side Contact, Side Entry Surface Mount ZIF Connector, Lead Free
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| FFC/FPC Connector | |
| 4 | |
| 1 | |
| Solder | |
| 1 | |
| Right Angle | |
| SKT | |
| 1/Contact | |
| 100VDC|100VAC | |
| 500 | |
| 30 | |
| -55 | |
| 105 | |
| 20 | |
| Tape and Reel | |
| 9.8 | |
| 6.5 | |
| 2.7 | |
| Surface Mount |
Whether your needs are small or large, this ffc/fpc connector SFW4R-2STE1LF flexible flat cable from FCI provides an organized, space-saving alternative to traditional spherical wire. It has a right angle body orientation. This socket type connector's 4 contacts that are made out of phosphor bronze and plated with tin. Its pitch is 1 mm. This is a 1-row connector. It has a maximum voltage rating of 100 VDC|100VAC. This device has a maximum current rating of 1 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It uses the solder termination method. SFW4R-2STE1LF is housed in brown polyphenylene sulfide. This product is 9.8 mm long, 2.7 mm tall and 6.5 mm deep. This flexible flat cable has an operating temperature of -55 to 105 °C.
| EDA / CAD Models |
