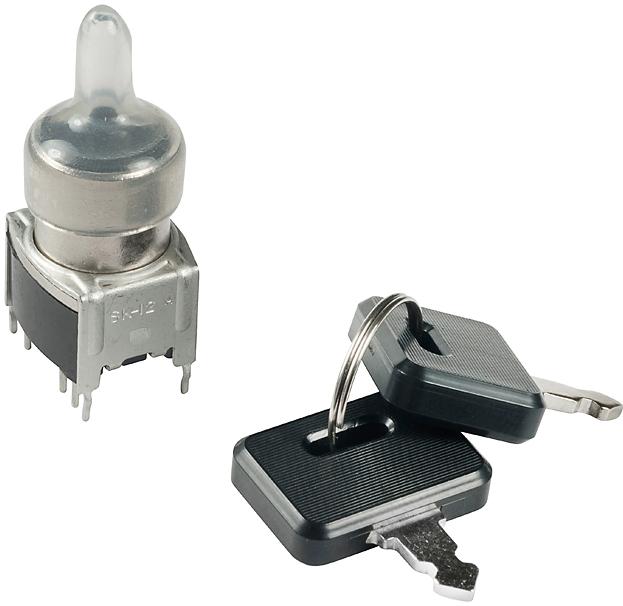

NKK SwitchesSK12AG13Schlüsselschalter
Switch Key Lock ON None ON SPDT 90° Flat Key 0.1A 28VAC 28VDC 0.4VA PC Pins 30000Cycles Bracket Mount/Through Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| Process Sealed | |
| SPDT | |
| ON None ON | |
| Flat Key | |
| 0.1@28VAC 28VDC | |
| 28 | |
| 28 | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 100 | |
| 80 | |
| 10000 | |
| 30000 | |
| 90 | |
| Bracket Mount/Through Hole | |
| PC Pins | |
| 2 | |
| 3.5 | |
| Round | |
| N/A/Body/Terminals | |
| Process/N/A/Molded-in | |
| 1|3 | |
| Glass Fiber/Polyamide | |
| Straight | |
| -25 | |
| 70 | |
| 10.5 | |
| 15.74 | |
| 14.5 | |
| 10.5 | |
| 15.74 | |
| 14.5 | |
| 21 |
This process sealed SK12AG13 Keylock switch from NKK Switches is a necessity if you need to keep your system safe from non-authorized users by just a turn of the key. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This switch key has a minimum operating temperature of -25 °C and a maximum of 70 °C. The SK12AG13 switch key has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 15.74 mm long, 21 mm tall and 14.5 mm deep.
