Compex Systems Pte LtdSMA-DP-LTESchnittstellenmodule

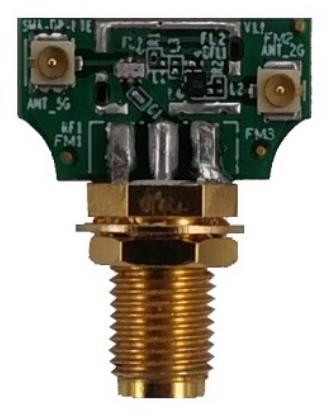

SMA-DP-LTE combines the signals from a 2.4GHz radio and a 5GHz radio to a single common dual-band antenna. With the filter, it prevents the 2.4GHz channel from interfering with the LTE signals.

Feature

• Combine the 2.4GHz and 5GHz signals to one single dual-band antenna

• LTE coexistence option are with High Rejection in LTE bands especially B7/B30/B40 and B41

• Low insertion loss <1.3dB

• Host Interface

      • 1x1 2.4GHz U.FL connector

      • 1x1 5GHz U.FL connector

      • 1x1 2.4/5GHz SMA connector

• Dimension (W x H x D)

      • 23mm x18 mm x10mm

Application

• WiFi bandpass filter that enables the coexistence of LTE and WiFi/Bluetooth signals

• WiFi or LTE Gateways, Routers, and Set-top boxes

• WiFi Access Points
