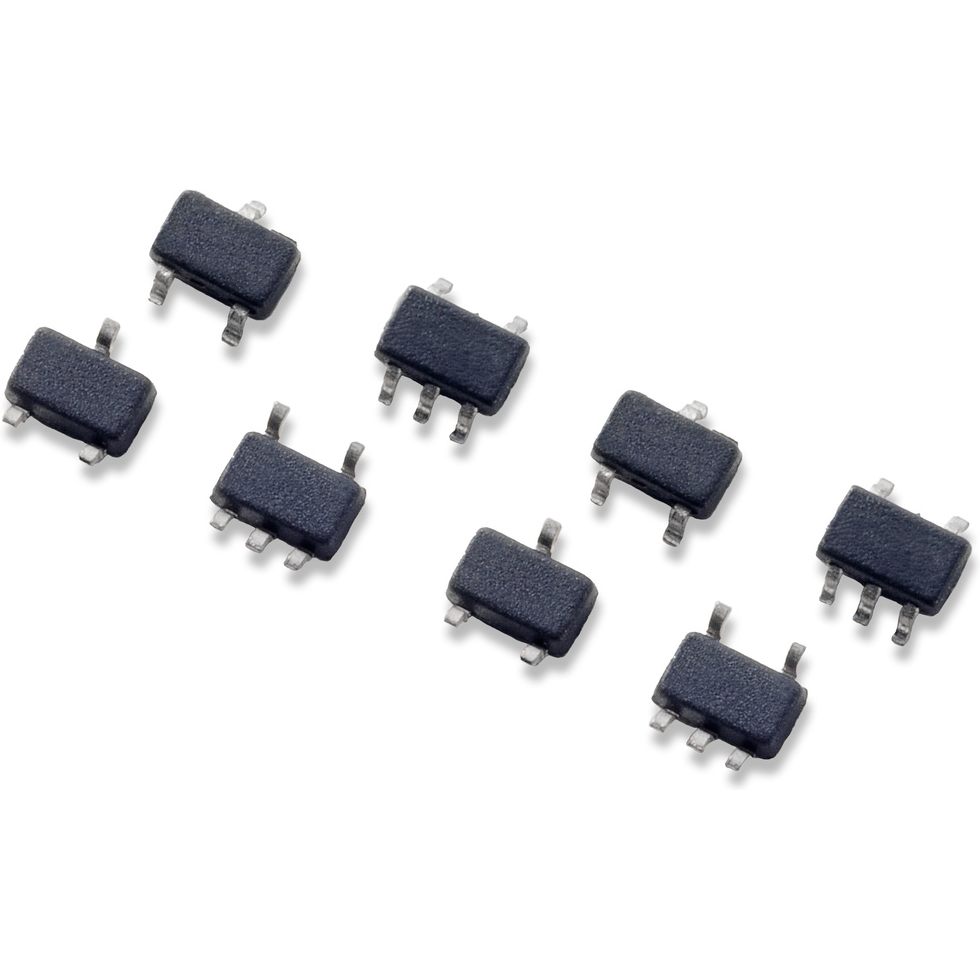

LittelfuseSP1002-01JTGESE-Entstörer
ESD Suppressor TVS Bi-Dir 6V 3-Pin SC-70 T/R Automotive AEC-Q101
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| Automotive | Yes |
| PPAP | Unknown |
| TVS | |
| Single | |
| Bi-Directional | |
| 1 | |
| 6 | |
| 6 | |
| 9.5 | |
| 16 | |
| 2@8/20us | |
| 0.5 | |
| 1 | |
| 6(Typ) | |
| -40 | |
| 125 | |
| Automotive | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1(Max) mm |
| Verpackungsbreite | 1.35(Max) mm |
| Verpackungslänge | 2.25(Max) mm |
| Leiterplatte geändert | 3 |
| Standard-Verpackungsname | SOT |
| Lieferantenverpackung | SC-70 |
| 3 | |
| Leitungsform | Gull-wing |
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Littelfuse's SP1002-01JTG TVS diode. This device's maximum clamping voltage is 16 V and minimum breakdown voltage is 6 V. Its test current is 10 mA. Its maximum leakage current is 0.5 μA. This TVS diode has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
