| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| Nanopower Comparator | |
| 1 | |
| Rail to Rail Input | |
| 53.98(Max) | |
| 24 | |
| 20 to 50 | |
| 45000(Typ) | |
| Push-Pull | |
| ±3.25|6.5 | |
| 15@6.5V | |
| 0.9 | |
| 6.5 | |
| ±3.25 | |
| 0.0001@6.5V | |
| 0.00015@6.5V | |
| Single|Dual | |
| -40 | |
| 125 | |
| Industrial | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 0.35(Max) |
| Verpackungsbreite | 1.05(Max) |
| Verpackungslänge | 1.05(Max) |
| Leiterplatte geändert | 6 |
| Standard-Verpackungsname | SON |
| Lieferantenverpackung | X2SON |
| 6 | |
| Leitungsform | No Lead |

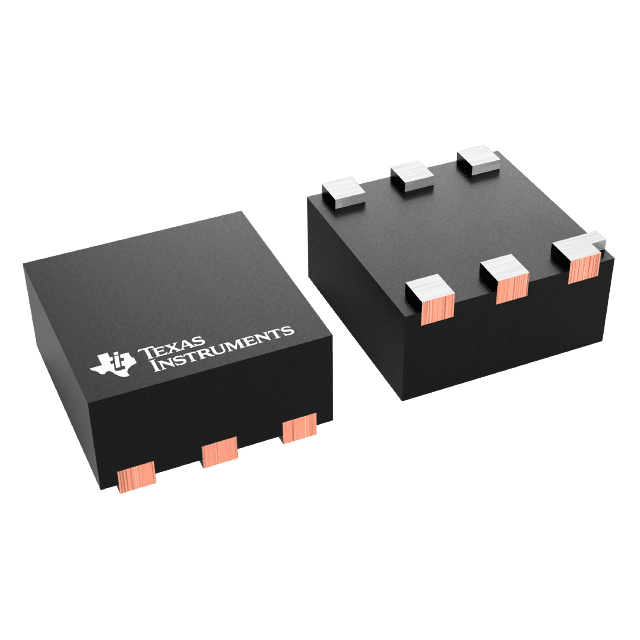

This specially engineered electronic TLV3691IDPFR comparator circuit from Texas Instruments compares two input voltages and outputs a signal to tell you the larger of the two signals. It has a push-pull output. Its typical dual supply voltage is 3 V, with a minimum of ±0.45 V and maximum of ±3.25 V. This comparator has a temperature range of -40 °C to 125 °C. It has a single channel per chip. Its typical PSRR is 53.98(Max) dB. This device uses one or two power supplies.
