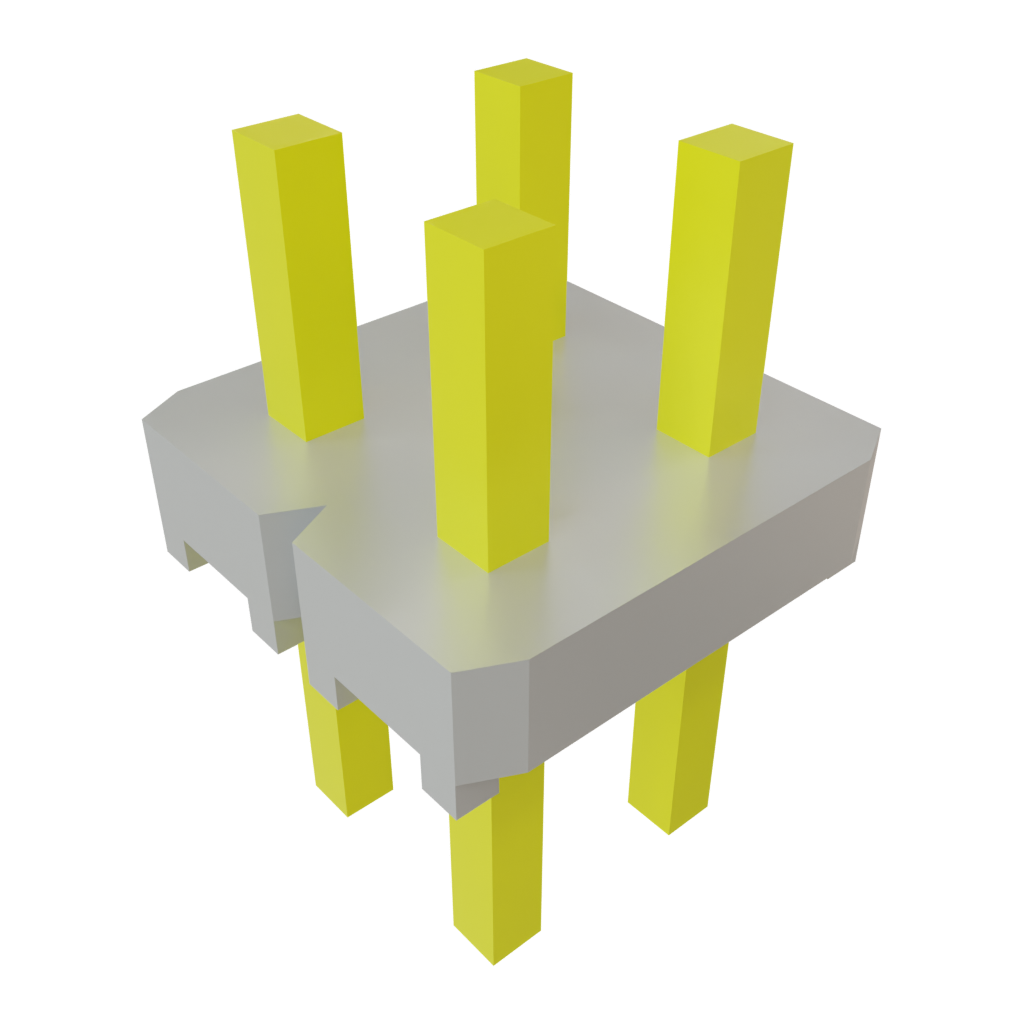

SamtecTLW-102-06-G-DSteckverbinderleisten und Leiterplattenbuchsen
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Top Entry Thru-Hole FLEX STACK Bulk
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Unshrouded Header | |
| HDR | |
| 4 | |
| 2 | |
| Solder | |
| 2.54 | |
| Straight | |
| 2.54 | |
| 5.2/Contact | |
| -55 | |
| 125 | |
| Bulk | |
| 5.08 | |
| 5.03 | |
| 4.19 | |
| FLEX STACK | |
| Contact Plating Thickness | (0.25/1.27)um |
| 3.43 | |
| Through Hole |
Are you looking for a solution to support physical configuration options on your PCB? Then mount this unshrouded TLW-102-06-G-D header connector from Samtec on your PCB today! This HDR connector's 4 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 5.2 A/contact. This connector has an operating temperature of -55 to 125 °C. TLW-102-06-G-D is housed in black liquid crystal polymer. It uses the solder termination method. This product is 5.08 mm long, 4.19 mm tall and 5.03 mm deep.
| EDA / CAD Models |
