| Compliant | |
| EAR99 | |
| Active | |
| 8542.33.00.01 | |
| Automotive | No |
| PPAP | No |
| Headphone/Speaker | |
| Class-AB | |
| 0.1%@16Ohm@1W | |
| Differential|Single | |
| 2-Channel Stereo | |
| 7 | |
| 12|9 | |
| 15 | |
| 26@12V | |
| Dual | |
| 3x2@16Ohm | |
| 4470 | |
| -40 | |
| 85 | |
| Tube | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1.05(Max) |
| Verpackungsbreite | 4.5(Max) |
| Verpackungslänge | 9.8(Max) |
| Leiterplatte geändert | 28 |
| Standard-Verpackungsname | SO |
| Lieferantenverpackung | HTSSOP EP |
| 28 | |
| Leitungsform | Gull-wing |

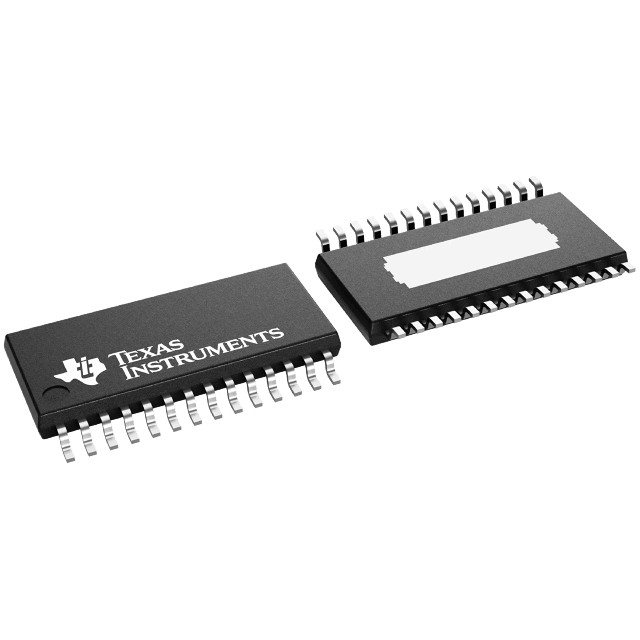

The TPA6030A4PWP class D amplifier from Texas Instruments is the fastest way to boost your output volume. Its maximum power dissipation is 4470 mW. It has a maximum load resistance of 16 Ohm. It has a differential input signal and a differential and single output signal. Its typical dual supply voltage is 9|12 V, with a minimum of 7 V and maximum of 15 V. It has a 2-channel stereo output. This audio amplifier has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its typical PSRR is 60 dB. This device uses dual power supplies.
