| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| LDO | |
| 1 | |
| Positive | |
| ±1 | |
| Adjustable | |
| 0.8 to 5 | |
| 2 | |
| 1.1 | |
| 6.5 | |
| 0.2@2000mA | |
| 0.8(Typ) | |
| 0.003%/V(Typ) | |
| 0.0001%/A(Typ) | |
| 35.4°C/W | |
| 47.6°C/W | |
| Shutdown|Thermal Shutdown Protection | |
| -40 | |
| 125 | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 0.88 |
| Verpackungsbreite | 3.5 |
| Verpackungslänge | 3.5 |
| Leiterplatte geändert | 20 |
| Standard-Verpackungsname | QFN |
| Lieferantenverpackung | VQFN EP |
| 20 | |
| Leitungsform | No Lead |

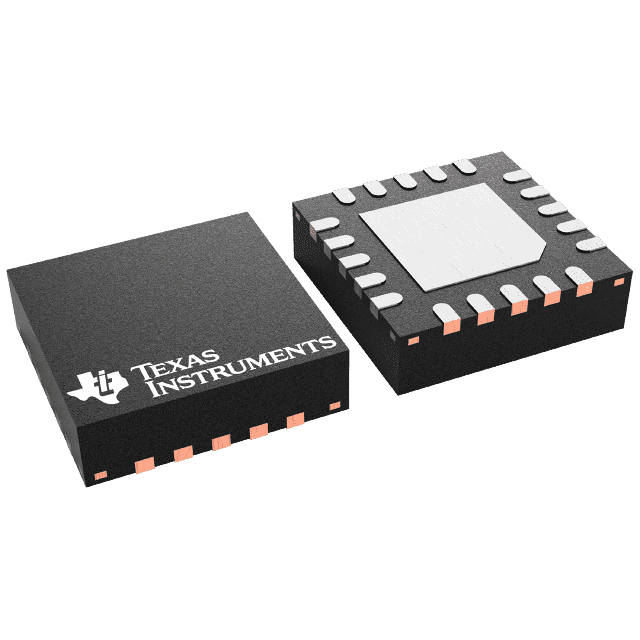

Use the LDO TPS7A8300RGRT linear regulator from Texas Instruments to maintain a constant output voltage. It has an overall accuracy of ±1 %. This voltage regulation device's single output can produce a current up to 2 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 1.1 V that does not exceed 6.5 V. With an adjustable output that has a voltage of 0.8 to 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.0001%/A(Typ) and line regulation of 0.003%/V(Typ). This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum dropout voltage is 0.12@2000mA V. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive.
