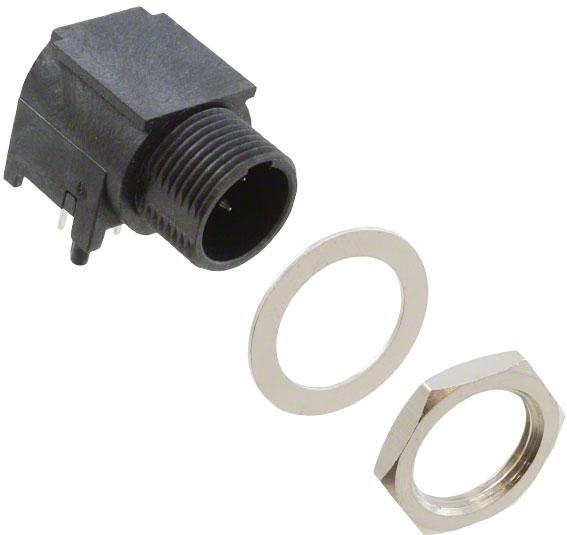

SwitchcraftTRAPC5MXSteckverbinder für Audio und Video
Conn XLR Connector M 5 POS 2.54mm Solder RA Thru-Hole 5 Terminal 1 Port Bulk
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.80.00 | |
| Automotive | No |
| PPAP | No |
| XLR Connector | |
| M | |
| 5 | |
| 5 | |
| 2.54 | |
| Solder | |
| Right Angle | |
| 5 | |
| 100 | |
| 10 | |
| 2000 | |
| Bulk | |
| 13.46 | |
| 20.07 | |
| 13.72 | |
| Through Hole | |
| Thermoplastic | |
| Tin | |
| Brass |
This xlr connector TRAPC5MX audio and video connector from Switchcraft can be adopted in any design which needs a peripheral audio and video device connected to it. This M connector's 5 contacts that are made out of brass and plated with tin. This connector has a single port. It has a male type gender. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 5 A. TRAPC5MX is housed in thermoplastic. This product comes packaged in bulk, so the parts will be stored loosely. Its 5 terminals use the solder termination method. This product is 13.46 mm long, 13.72 mm tall and 20.07 mm deep.
