SamtecTSW-105-07-F-D-LLSteckverbinderleisten und Leiterplattenbuchsen

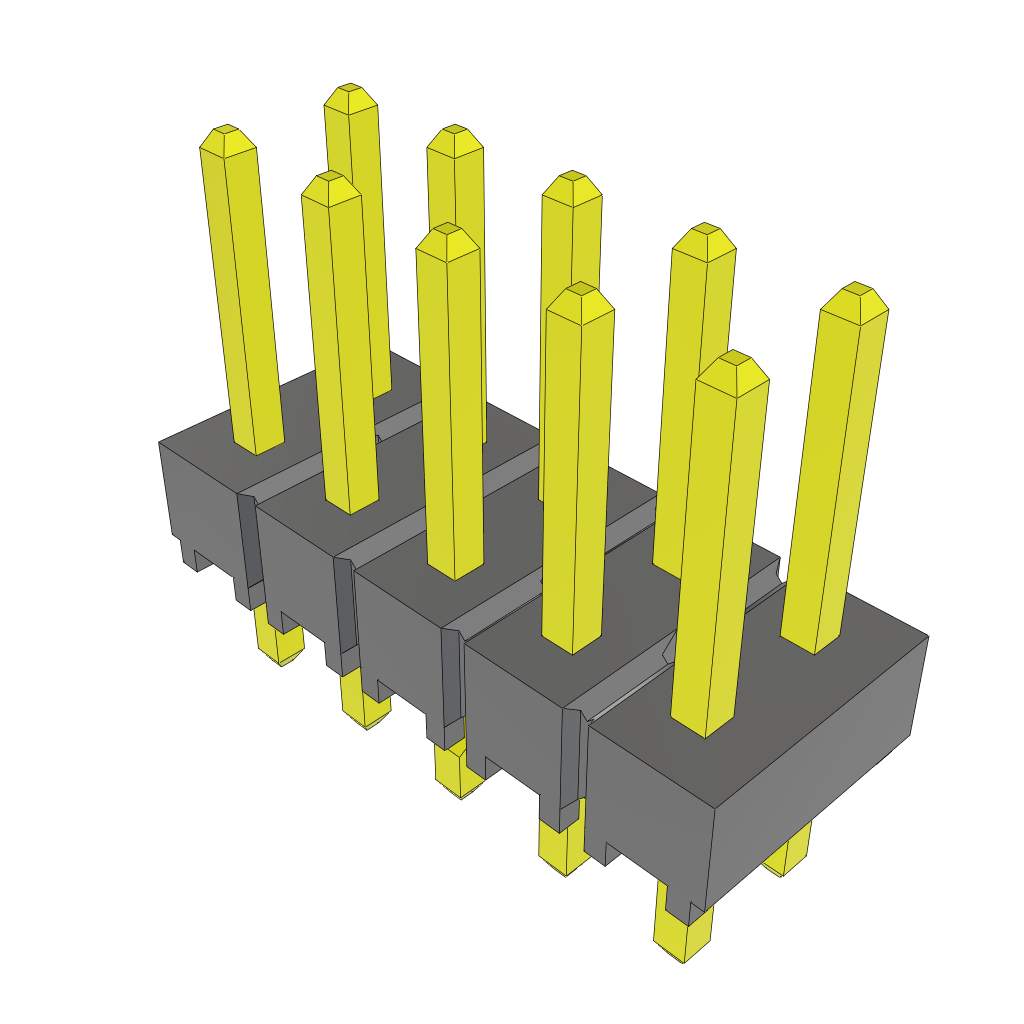

Mount this unshrouded TSW-105-07-F-D-LL header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector's 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product is 12.7 mm long, 8.38 mm tall and 5.08 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. TSW-105-07-F-D-LL is housed in black polyester.
