SamtecTSW-108-08-S-DSteckverbinderleisten und Leiterplattenbuchsen

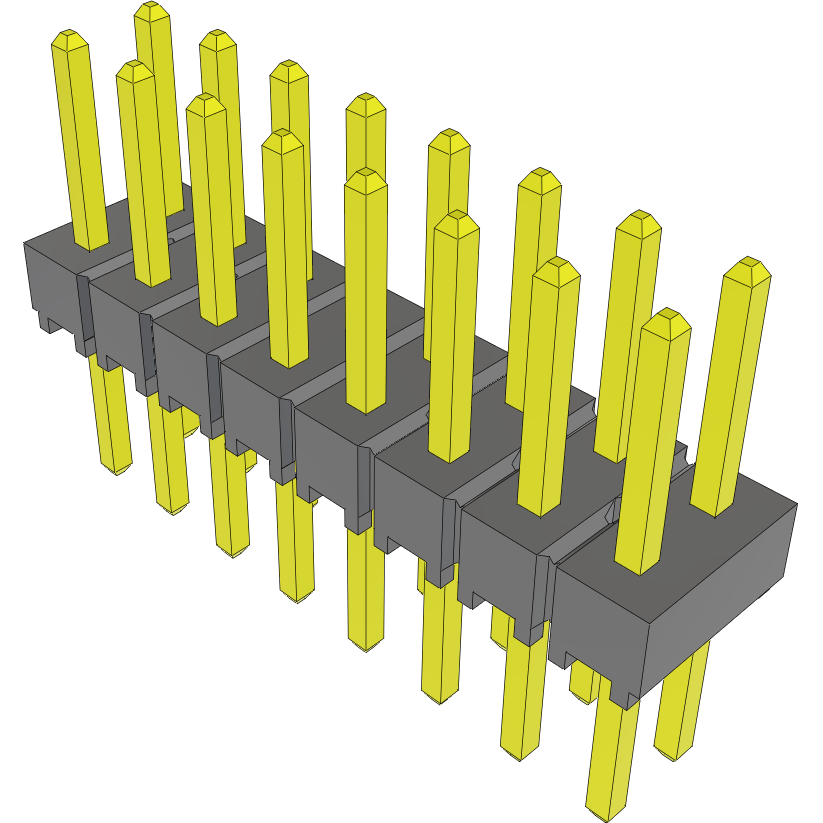

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this unshrouded TSW-108-08-S-D header connector from Samtec. This HDR connector's 16 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 550 VAC. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This product is 20.32 mm long, 8.38 mm tall and 5.08 mm deep. TSW-108-08-S-D is housed in black polyester. This connector has an operating temperature of -55 to 125 °C.
