SamtecTSW-109-07-S-SSteckverbinderleisten und Leiterplattenbuchsen

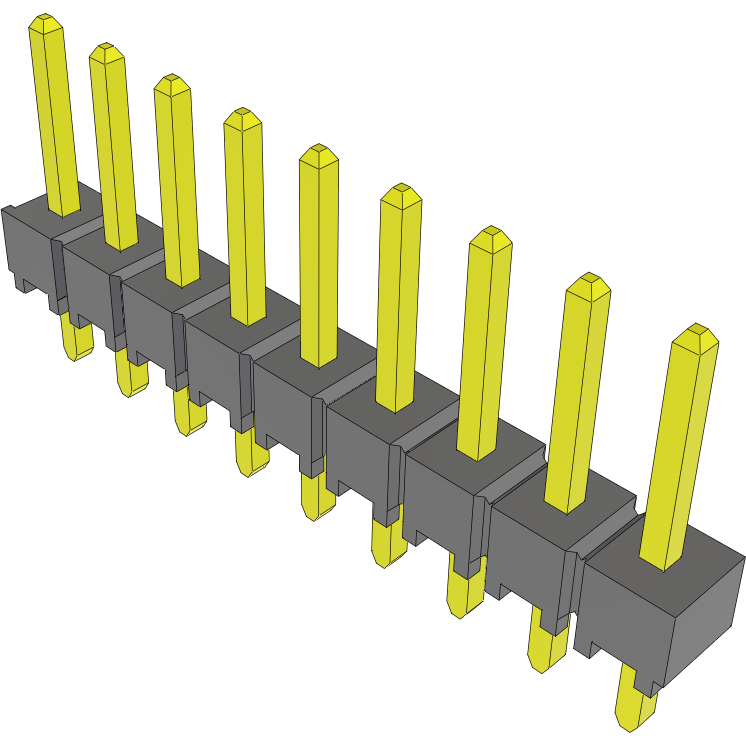

Mount this unshrouded TSW-109-07-S-S header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector's 9 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-109-07-S-S is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. This product is 22.86 mm long, 8.38 mm tall and 2.54 mm deep. It uses the solder termination method.
