SamtecTSW-112-08-T-S-RASteckverbinderleisten und Leiterplattenbuchsen

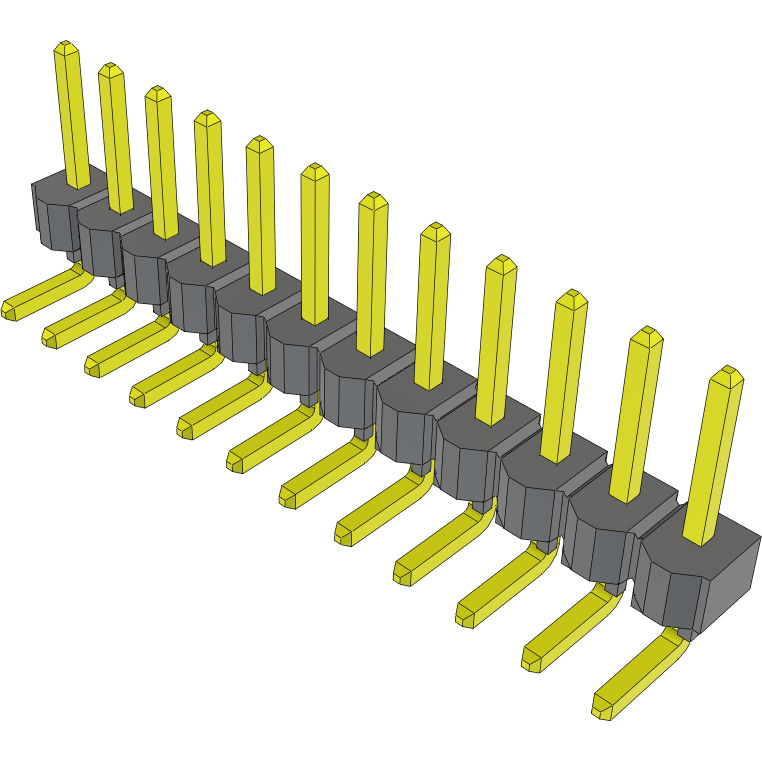

This unshrouded TSW-112-08-T-S-RA header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector's 12 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 450 VAC. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. TSW-112-08-T-S-RA is housed in black polyester. This product is 30.48 mm long, 3.02 mm tall and 9.9 mm deep.
