| Compliant with Exemption | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| SVHC überschreitet Schwellenwert | Yes |
| Automotive | No |
| PPAP | No |
| Schottky Diode | |
| Max. DC-Sperrspannung (V) | 100 |
| Single Dual Anode | |
| 100 | |
| 10 | |
| 180 | |
| 0.68 | |
| 150 | |
| 60°C/W(Typ) | |
| -40 | |
| 150 | |
| Tape and Reel | |
| Commercial | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1.2(Max) mm |
| Verpackungsbreite | 6.15(Max) mm |
| Verpackungslänge | 4.35(Max) mm |
| Leiterplatte geändert | 2 |
| Tab | Tab |
| Standard-Verpackungsname | TO |
| Lieferantenverpackung | SMPC |
| 3 | |
| Leitungsform | Gull-wing |

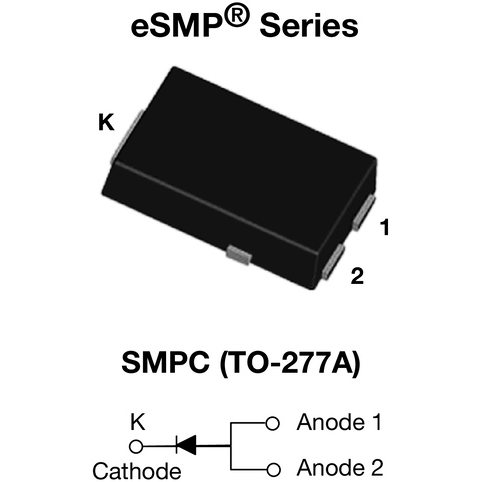

Switch from an AC voltage to a DC voltage using a Schottky diode V10P10-M3/86A rectifier from Vishay. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This rectifier has an operating temperature range of -40 °C to 150 °C. Its peak non-repetitive surge current is 180 A, while its maximum continuous forward current is 10 A. It is made in a single dual anode configuration.
| EDA / CAD Models |
