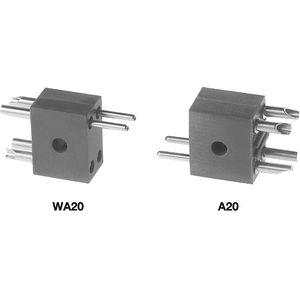

VishayWA20P-ABCSteckverbinder, rechteckig
Conn Rack and Panel PIN 4 POS 3.18mm Solder Cup ST Cable Mount
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| EA | |
| Automotive | No |
| PPAP | No |
| Rack and Panel | |
| PL | |
| 4 | |
| 2 | |
| Solder Cup | |
| 3.18 | |
| Straight | |
| PIN | |
| 7.5 | |
| 11.18 | |
| 19.05 | |
| 6.35 | |
| Cable Mount | |
| Gold | |
| Brass |
Electrical connections will be kept strong and reliable with this rack and panel WA20P-ABC USB connector from Vishay. It has a straight body orientation. This PL connector's 4 contacts that are made out of brass and plated with gold. It has a plug type gender. Its pitch is 3.18 mm. This is a 2-row connector. This device has a maximum current rating of 7.5 A. WA20P-ABC is housed in diallyl phthalate. This product is 11.18 mm long, 6.35 mm tall and 19.05 mm deep. It uses the solder cup termination method.
