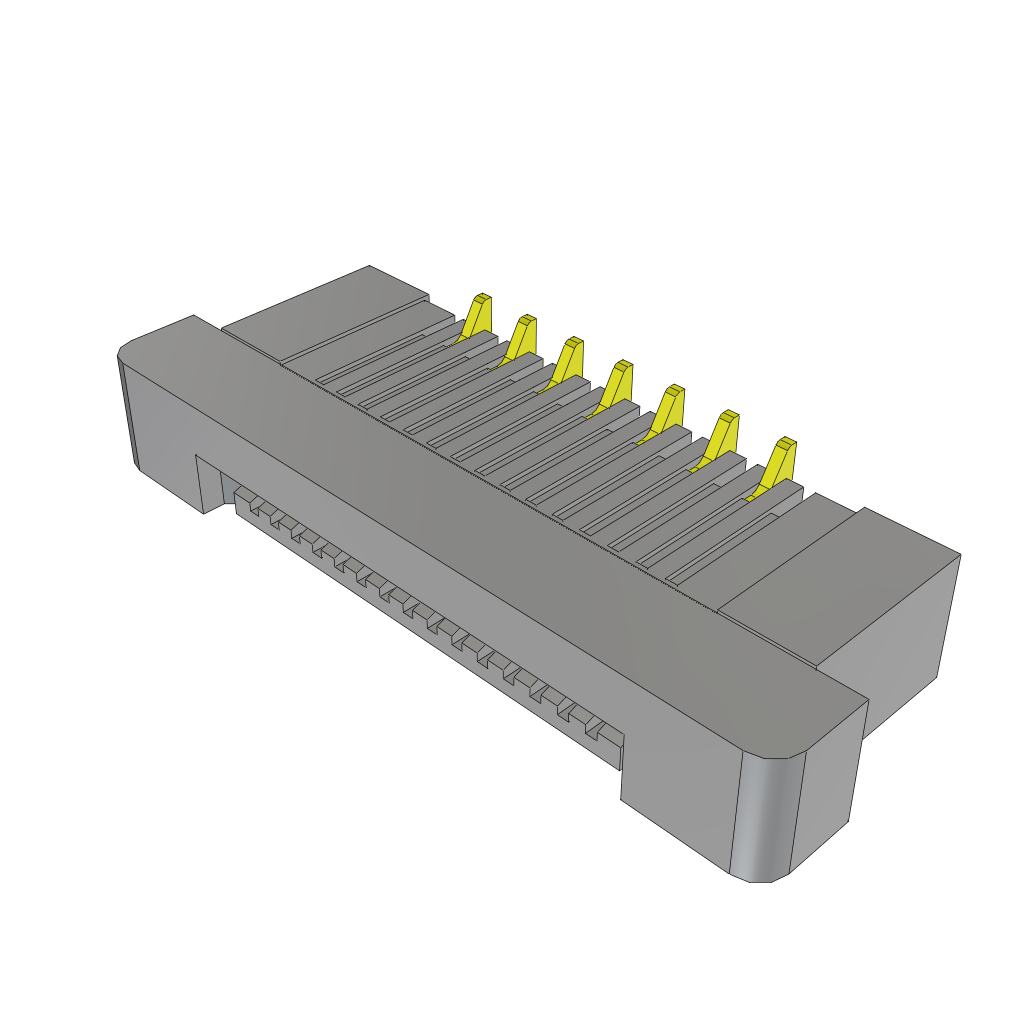

SamtecZF5S-15-03-T-WTSteckverbinder, FFC-FPC

Samtec's ffc connector ZF5S-15-03-T-WT flexible flat cable is a great option to consider when working with tightly constrained electronics projects. This is a 1-row connector. Its pitch is 0.5 mm. This socket type connector's 15 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a right angle body orientation. This device has a maximum current rating of 1.4 A/contact. ZF5S-15-03-T-WT is housed in black liquid crystal polymer. It uses the solder termination method. This product is 13.15 mm long, 4.92 mm tall and 3 mm deep. This flexible flat cable has an operating temperature of -55 to 105 °C.
