Diodes IncorporatedZXMS81045SPQ-13Leistungsschaltern

Automotive-Compliant IntelliFET® High-Side Power Switch

The ZXMS81045SPQ is an automotive-compliant, single-channel, intelligent high-side switch (IntelliFET).

It features a vertical DMOS MOSFET with a typical R_DS(ON) of 34mOhm at 25°C, driver and integrated protection that include:

• •  Overvoltage protection, including load dump
• •  Overtemperature protection with auto restart
• •  Reverse polarity protection
• •  Short-circuit protection
• •  ESD protection
• •  Loss of ground protection
• •  Voltage-dependent current limiting

The onboard diagnostics detect fault conditions and self-protection events, including open-load in the OFF-state, over-load in the ON-state, and overtemperature shutdown.

The device includes a diagnostic current-sense output (IS) proportional to load current and a defined diagnostic fault signal in case of overload operation, overtemperature, short-circuit, or open-load conditions.

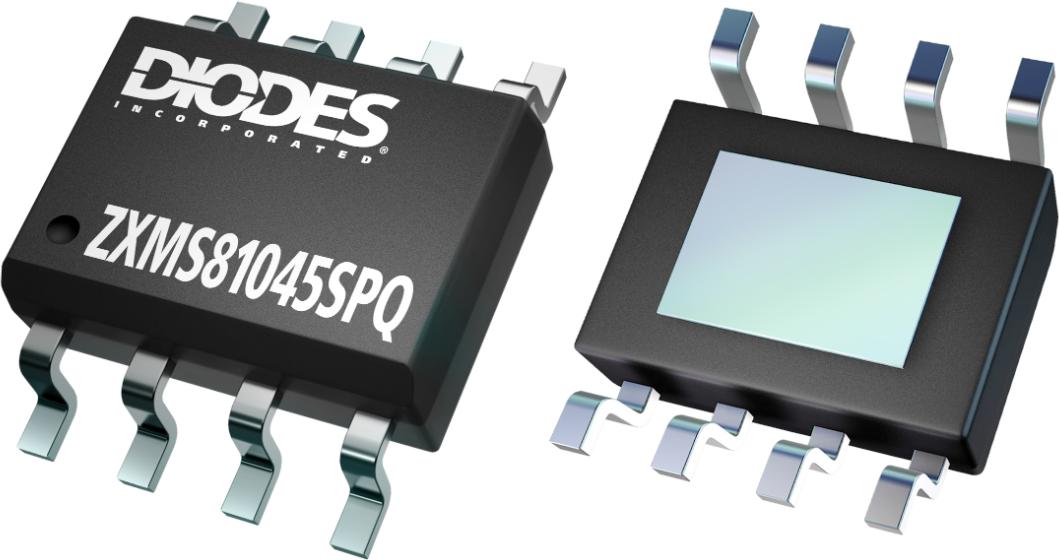

The ZXMS81045SPQ is available in the SO-8EP (Type E) package.

Key Features and Benefits

• •  Overvoltage Protection, Including Load Dumpo Overvoltage Protection, Including Load Dump
  Protects the device if the battery voltage exceeds the clamp voltage
• •  Overtemperature Protection with Auto-Restart
  Thermal shutdown when TJ max is reached during overload condition
• •  Reverse Polarity Protection Using Minimal External Components
  Protects the device should battery supply be accidentally reversed
• •  Voltage Dependent Current Limiting
  Protects the device and the load from an overcurrent condition
• •  Loss of Ground Protection (Using External Components)
  Protects the device and leaves the load OFF should the ground connection be lost
• •  Diagnostics Using Current Sense
  Enables load current to be measured; overall application state to be monitored, and detection of open load conditions

Applications

• •  High-side switching with diagnostic feedback for:
• •  12V grounded loads
• •  Resistive, inductive, and capacitive loads
• •  Suitable for high inrush current loads
• •  Incandescent lamps (P27W/P21W), motors, etc
• •  Compact low-power replacement for:
• •  Relays, fuses, and discrete circuits
