1% Error, 0-5 V Input, 0-500 mA Output, Low-Side Voltage to Current (V-I) Converter
Referenzdesign unter Verwendung des Teils OPA735AID von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Electrocardiograph Battery Powered
- Electronic Scale
- Portable Medical Instrumentation
- Sensor and Transducer
Beschreibung

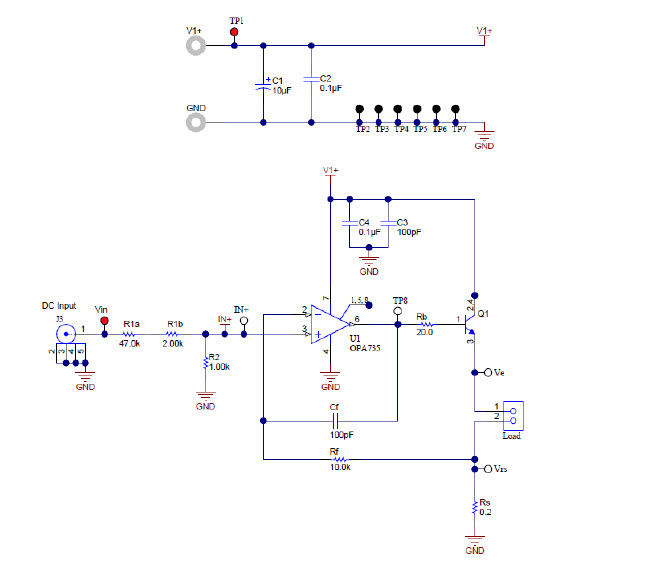

- 1% Error, 0-5 V Input, 0-500 mA output, low-side voltage to current (V-I) converter. This low-side voltage-to-current (V-I) converter delivers a well-regulated current to a floating load. The design uses a small-signal Op-Amp to control an NPN emitter-follower that sources current to the load. The current is accurately regulated by feeding back the voltage drop across a low-side current-sense resistor to the Op-Amp
Haupteigenschaften
-
Gain100 dB
-
Number of SuppliesSingle
-
Supply Voltage12 V
Empfohlene Bauteile (6)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
OPA735AIDBVT | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Auto Zero Amplifier R-R O/P ±6V/12V 5-Pin SOT-23 | In den Warenkorb | |
|
OPA735AIDR | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Auto Zero Amplifier R-R O/P ±6V/12V 8-Pin SOIC T/R | In den Warenkorb | |
|
|
OPA735AID | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Auto Zero Amplifier R-R O/P ±6V/12V 8-Pin SOIC Tube | In den Warenkorb | |
|
|
OPA735AIDBVTG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Auto Zero Amplifier R-R O/P ±6V/12V 5-Pin SOT-23 T/R | In den Warenkorb | |
|
|
OPA735AIDBVR | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Auto Zero Amplifier R-R O/P ±6V/12V 5-Pin SOT-23 | In den Warenkorb | |
|
|
OPA735AIDBVRG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Auto Zero Amplifier R-R O/P ±6V/12V 5-Pin SOT-23 T/R | In den Warenkorb | |
