100W Off-Line Switching Regulator Application Circuit
Referenzdesign unter Verwendung des Teils LT1071 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Power Management
- Power Supplies
Beschreibung

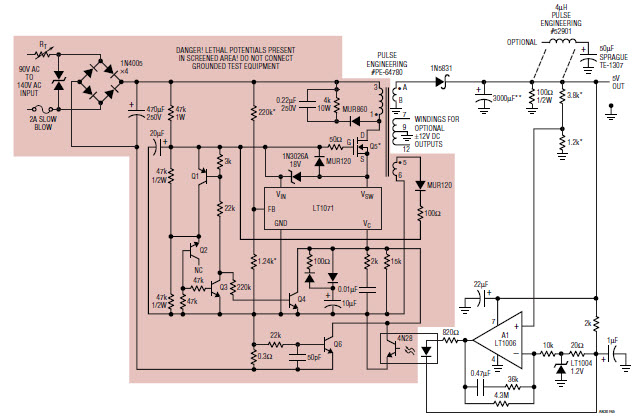

- Application Circuit shows Power Supply Using 100W Off Line Switching Regulator to Provide 5V Output Voltage From 90V to 140V AC Input Voltage
Haupteigenschaften
-
Conversion TypeAC to DC
-
Input Voltage90 to 140 (AC) V
-
Output Voltage5 V
-
Output Power100 W
-
TopologyBuck
