110W, 8V, 15V, 28V, 120V AC to DC Multi-Output Power Supply for Power Management
Referenzdesign unter Verwendung des Teils MC44603P von onsemi
Bilder
1 / 1
Für Endprodukte
- Power Management
Beschreibung

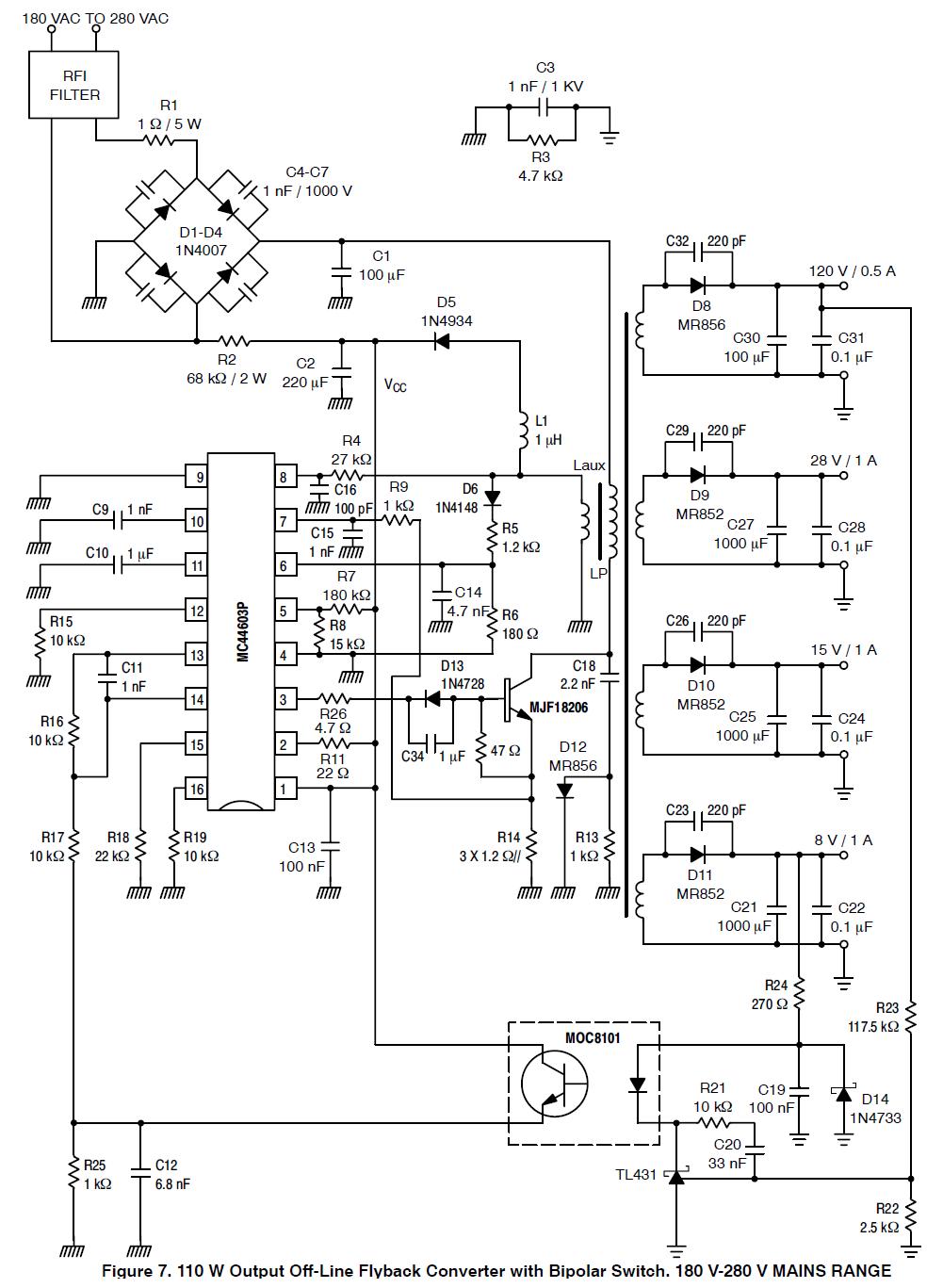

- MC44603 in a flyback dedicated to a 110 W output power supply in two distinct cases: 110 Vrms mains and 180 to 280 Vrms mains
Haupteigenschaften
-
Conversion TypeAC to DC
-
Input Voltage180 to 280 (AC) V
-
Output Voltage8|15|28|120 V
-
Output Current0.5@120V|1@8V|1@15V|1@28V A
-
Output Power110 W
-
Efficiency85 %
-
TopologyFlyback
