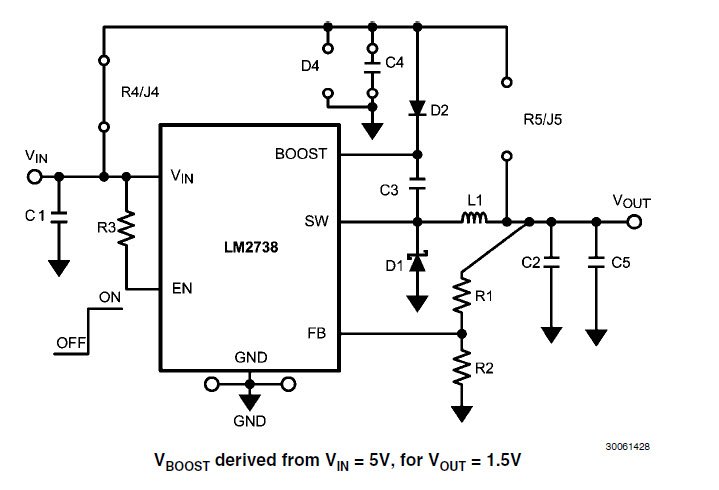

1.5V DC to DC Single Output Power Supply for DSL Modem
Referenzdesign unter Verwendung des Teils LM2738XMY von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Battery Management
- DSL Modem
- HDD/IC Audio
- Set-Top Box
- USB Wireless
Beschreibung
- LM2738 application note is configured to convert 5V input to 3.3V output using the LM2738X1.6MHz step down DC-DC regulator
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage5 V
-
Output Voltage1.5 V
-
TopologyBuck
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LM2738XMYX/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 20V Step Down Single-Out 0.8V to 18V 1.5A 8-Pin HVSSOP EP T/R | In den Warenkorb | |
|
|
LM2738XMY/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 20V Step Down Single-Out 0.8V to 18V 1.5A 8-Pin HVSSOP EP T/R | In den Warenkorb | |
|
|
LM2738XMYX/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 20V Step Down Single-Out 0.8V to 18V 1.5A 8-Pin HVSSOP EP T/R | In den Warenkorb | |
|
|
LM2738XMY/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 20V Step Down Single-Out 0.8V to 18V 1.5A 8-Pin HVSSOP EP T/R | In den Warenkorb | |
