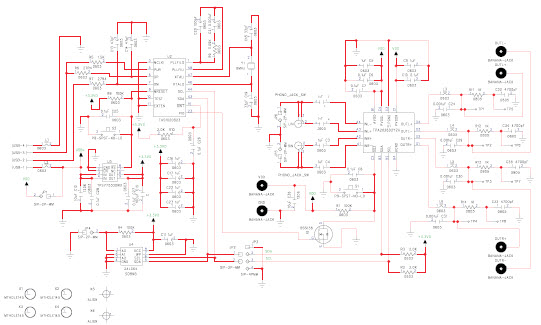

1.7W, 2-Channel, Class-D Audio Power Amplifier for Cellular Phone
Referenzdesign unter Verwendung des Teils TPA2026D2YZH von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Cellular Phone
- DVD Player
- Gaming and Toys
- Internet Radio Player
- Laptop
- Notebook
- PC USB Speaker
- Personal Digital Assistant
Beschreibung
- TPA2026D2 is a stereo, filter-free Class-D audio power amplifier with automatic gain control, Dynamic range compression and I2C digital volume control
Haupteigenschaften
-
Number of Channels2
-
Output Power1.7 W
-
Amplifier TypeClass-D
Empfohlene Bauteile (5)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
24LC64-E/SN16KVAO | Microchip Technology | EEPROM | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin SOIC N Tube Automotive AEC-Q100 | In den Warenkorb | |
|
ECS-60-32-5PXDN-TR | ECS, Inc. International | Crystals | Crystal 6MHz ±30ppm (Tol) ±100ppm (Stability) 32pF FUND 70Ohm 2-Pin SMD T/R | In den Warenkorb | |
|
|
24LC64-E/SN | Microchip Technology | EEPROM | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V Automotive AEC-Q100 8-Pin SOIC N Tube | In den Warenkorb | |
|
TPA2026D2YZHR | Texas Instruments | Audio Amplifiers | Audio Amp Speaker 2-CH Stereo 1.72W Class-D 16-Pin DSBGA T/R | In den Warenkorb | |
|
|
TPA2026D2YZHT | Texas Instruments | Audio Amplifiers | Audio Amp Speaker 2-CH Stereo 1.72W Class-D 16-Pin DSBGA T/R | In den Warenkorb | |
