20-Bit, 1CH DAC for Data Acquisition System
Referenzdesign unter Verwendung des Teils AD5790BCPZ von Analog Devices
Bilder
1 / 4
Für Endprodukte
- Data Acquisition System
- Industrial Control
- Portable Medical Instrumentation
- Test Equipment
Beschreibung

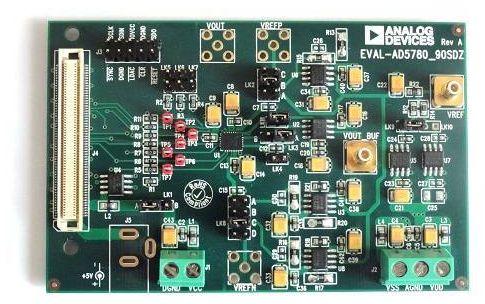

- Evaluation Board for AD5790, 20-Bit Serial Input, Voltage Output DAC with Integrated Precision Reference Buffer Amplifiers
Haupteigenschaften
-
DAC Resolution20 Bit
-
Number of Channels1CH
Empfohlene Bauteile (12)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
AD8676BRZ-REEL7 | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Dual Precision Amplifier R-R O/P ±15V 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
ADR445BRZ-REEL7 | Analog Devices | Voltage References | V-Ref Precision 5V 10mA 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
ADR445BRZ | Analog Devices | Voltage References | V-Ref Precision 5V 10mA 8-Pin SOIC N Tube | In den Warenkorb | |
|
|
AD8675ARZ-REEL7 | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Single Precision Amplifier R-R O/P ±18V 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
AD8676BRZ-REEL | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Dual Precision Amplifier R-R O/P ±15V 8-Pin SOIC N T/R | In den Warenkorb | |
|
24LC64-I/SN | Microchip Technology | EEPROM | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin SOIC N Tube | In den Warenkorb | |
|
|
AD8675ARZ | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Single Precision Amplifier R-R O/P ±18V 8-Pin SOIC N Tube | In den Warenkorb | |
|
|
AD8675ARZ-REEL | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Single Precision Amplifier R-R O/P ±18V 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
AD8676BRZ | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Dual Precision Amplifier R-R O/P ±15V 8-Pin SOIC N Tube | In den Warenkorb | |
|
|
24LC64-I/SNG | Microchip Technology | EEPROM | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin SOIC N Tube | In den Warenkorb | |
|
AD5790BCPZ | Analog Devices | Digital to Analog Converters - DACs | DAC 1-CH Segment 20-bit 24-Pin LFCSP EP Tray | In den Warenkorb | |
|
|
AD5790BCPZ-RL7 | Analog Devices | Digital to Analog Converters - DACs | DAC 1-CH Segment 20-bit 24-Pin LFCSP EP T/R | In den Warenkorb | |
