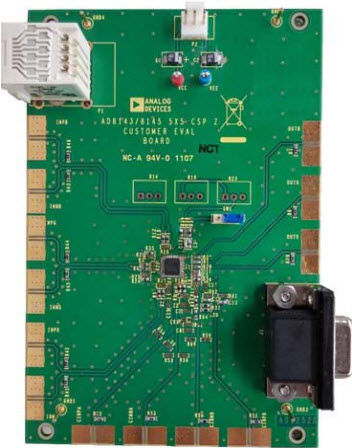

AD8145-EVALZ, Evaluation Board for the AD8145 High Speed, Triple Differential Receivers with Comparators
Referenzdesign unter Verwendung des Teils AD8145YCPZ von Analog Devices
Bilder
1 / 3
Für Endprodukte
- Automotive and Transportation
Beschreibung
- AD8145-EVALZ, Evaluation Board for the AD8145 High Speed, Triple Differential Receivers with Comparators. The AD8143 and AD8145 are triple, low cost, differential to single-ended receivers, specifically designed for receiving red, green and blue (RGB) signals over a twisted pair cable or differential printed circuit board (PCB) traces. These products can also receive any type of analog signal or high speed data transmission. Two auxiliary comparators with hysteresis are provided on both products to decode video sync signals encoded on the received common-mode voltages. These comparators receive digital signals or can be used as general-purpose comparators
Haupteigenschaften
-
Number of Channels3
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
AD8145YCPZ-RL | Analog Devices | Video Amplifiers | Video Amp Triple ±5.5V 32-Pin LFCSP EP T/R | In den Warenkorb | |
|
|
AD8145YCPZ-R7 | Analog Devices | Video Amplifiers | Video Amp Triple ±5.5V 32-Pin LFCSP EP T/R | In den Warenkorb | |
