ADC122S706EB, Evaluation Board using ADC122S706 dual 12-bit, 500 kSPS to 1 MSPS simultaneous sampling ADC
Referenzdesign unter Verwendung des Teils ADC122S706CIMT von Texas Instruments
Bilder
1 / 2
Für Endprodukte
- Data Acquisition System
- Displays and Monitors
- General Control System
- Instrumentation and Measurement
- Motor Control and Driver System
- Portable Medical Instrumentation
- Power Meter
- Sensor and Transducer
Beschreibung

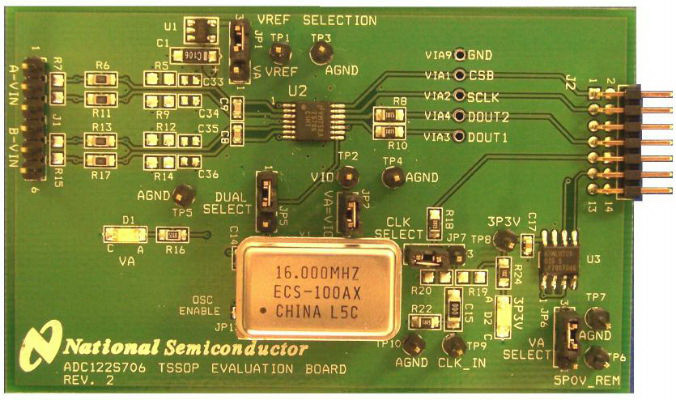

- ADC122S706EB, Evaluation Board using ADC122S706 dual 12-bit, 500 kSPS to 1 MSPS, simultaneous sampling Analog to Digital Converter. This ADC has two analog input channels that are sampled simultaneously and can operate at speeds up to 1 MSPS. The converters digital outputs are available on single or dual data output pins. The ADC122S706 either uses a crystal oscillator (Y1) which is provided on this board or an externally supplied clock at TP9
Haupteigenschaften
-
ADC Resolution12 Bit
-
ADC Sampling Rate1M SPS
-
Number of Channels2CH
