ADS1244EVM, Evaluation Board using ADS1244, 24-bit, 30 SPS delta-sigma Analog to Digital Converter
Referenzdesign unter Verwendung des Teils ADS1244IDGS von Texas Instruments

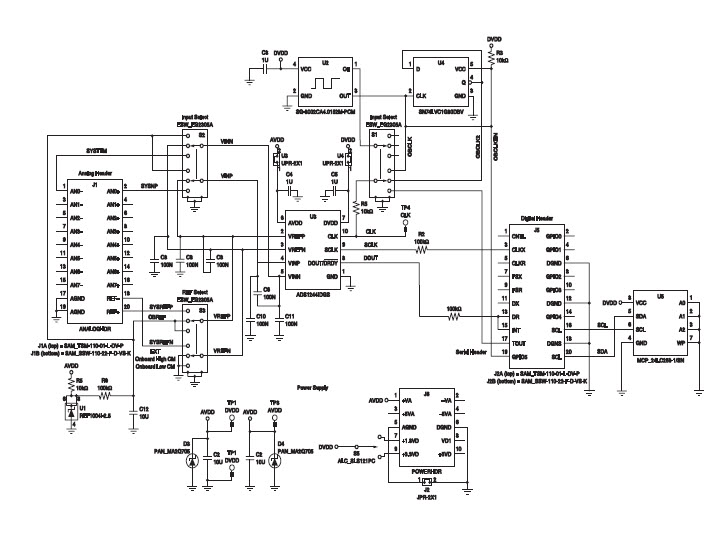

Bilder
1 / 2
Für Endprodukte
- Handheld POS Scanner
- Industrial Process Measurement and Control
- Portable Medical Instrumentation
- Weigh Scale/Bridge Sensor
Beschreibung
- ADS1244EVM, Evaluation Board using ADS1244, 24-bit, 30 SPS delta-sigma Analog to Digital Converter. Designed for prototyping and evaluation, they include a reference circuit and an oscillator circuit with two selectable frequencies
Haupteigenschaften
-
ADC Resolution24 Bit
-
ADC Sampling Rate30 SPS
-
Number of Channels1CH
