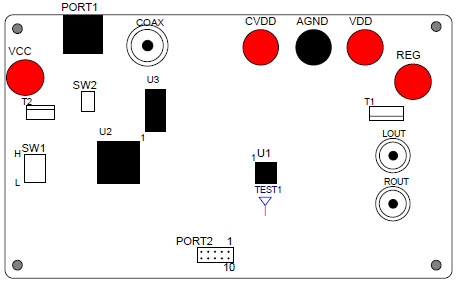

AKD4420-SC, Evaluation Board for AK4420 24-Bit Stereo Delta-Sigma DAC
Referenzdesign unter Verwendung des Teils AK4420 von Asahi Kasei Microdevices Corporation
Bilder
1 / 3
Für Endprodukte
- AV Receiver
- Consumer Equipments
- DVD Player
- Set-Top Box
Beschreibung

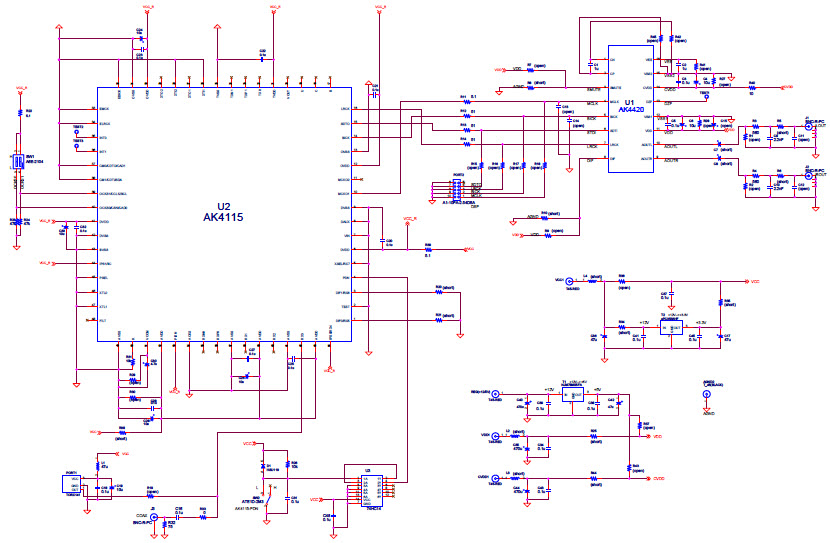

- AKD4420-SC, Evaluation Board for AK4420, 192kHz sampling, 24Bit Stereo Delta-Sigma DAC with 2Vrms Output. The AKD4420-SC has a digital audio interface (AK4115) of Optical input and can easily achieve the interface with digital audio system. Therefore, it is easy to evaluate the sound quality of AK4420
Empfohlene Bauteile (3)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
74HC14T14-13 | Diodes Incorporated | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP T/R | In den Warenkorb | |
|
74HC14S14-13 | Diodes Incorporated | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SO T/R | In den Warenkorb | |
|
NJM78M05FA | Nisshinbo Micro Devices Inc | Linear Regulators | Standard Regulator Pos 5V 0.5A 3-Pin(3+Tab) TO-220F | In den Warenkorb | |
