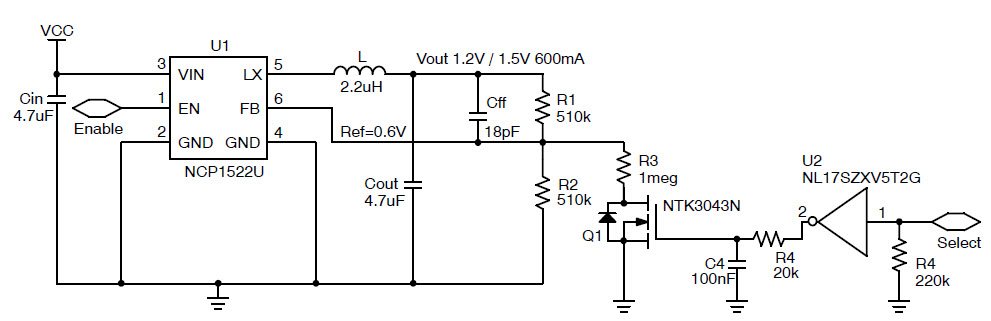

AND8337/D, 1.2V, 1.5V DC to DC Single Output Power Supply Reference Design
Referenzdesign unter Verwendung des Teils NCP1522ASNT1G von onsemi
Bilder
1 / 1
Für Endprodukte
- ADSL Modem
- Digital Camera
- MP3 Player
- Wireless Modem
Beschreibung
- AND8337/D, Power Supply Using High Frequency DC-DC Converters Providing 1.2V or 1.5V Output Reference Design
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage3.3 V
-
Output Voltage1.2|1.5 V
-
Output Current0.6 A
-
TopologyBuck
Empfohlene Bauteile (8)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
NL17SZU04DBVT1G | onsemi | Inverters and Schmitt Triggers | Single Unbuffered Inverter | In den Warenkorb | |
|
NL17SZ14XV5T2G | onsemi | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 1-Element CMOS 5-Pin SOT-553 T/R | In den Warenkorb | |
|
NL17SZ14DFT2G | onsemi | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 1-Element CMOS 5-Pin SC-88A T/R | In den Warenkorb | |
|
|
NL17SZ04XV5T2G | onsemi | Inverters and Schmitt Triggers | Inverter 1-Element CMOS 5-Pin SOT-553 T/R | In den Warenkorb | |
|
|
NL17SZ14DBVT1G | onsemi | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 1-Element CMOS 5-Pin SC-74A T/R | In den Warenkorb | |
|
|
NL17SZU04DFT2G | onsemi | Inverters and Schmitt Triggers | Inverter 1-Element CMOS 5-Pin SC-88A T/R | In den Warenkorb | |
|
|
NL17SZ04DBVT1G | onsemi | Inverters and Schmitt Triggers | Inverter 1-Element CMOS 5-Pin SC-74A T/R | In den Warenkorb | |
|
|
NL17SZ04DFT2G | onsemi | Inverters and Schmitt Triggers | Inverter 1-Element CMOS 5-Pin SC-88A T/R | In den Warenkorb | |
