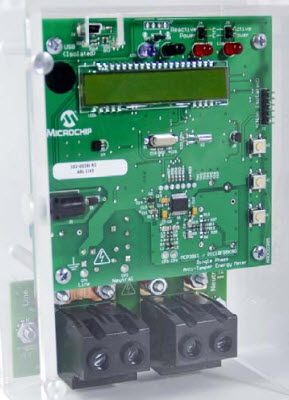

ARD00385, MCP3911 and PIC18F85K90 Single-Phase Anti-Tamper Energy Meter
Referenzdesign unter Verwendung des Teils MCP3911A0-E/SS von Microchip Technology
Bilder
1 / 6
Zugehörige Dokumente
Für Endprodukte
- Automotive Applications
- Energy Meter
- Patient Monitoring
- Portable Instrumentation
Beschreibung

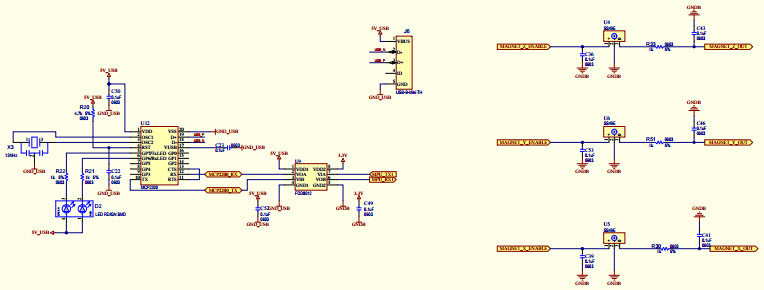

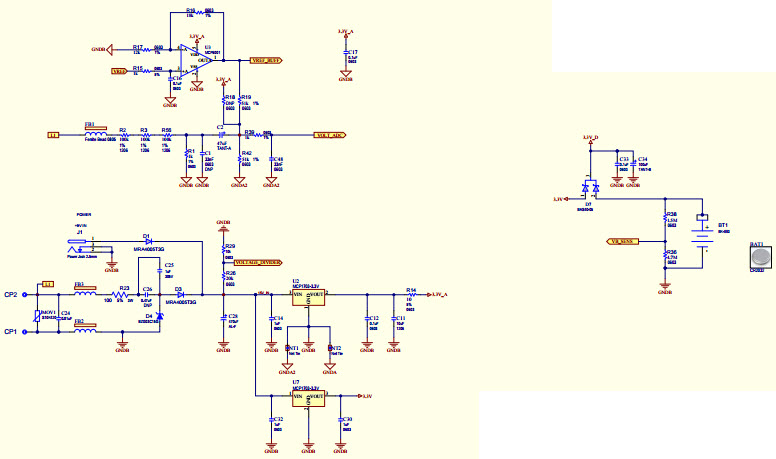

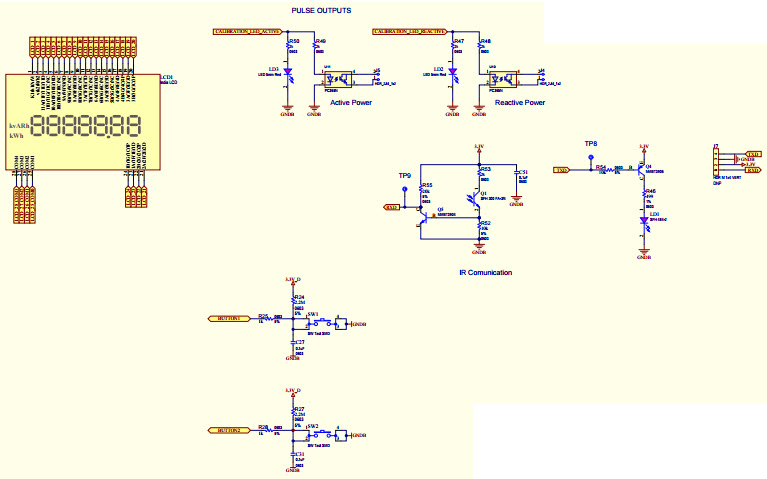

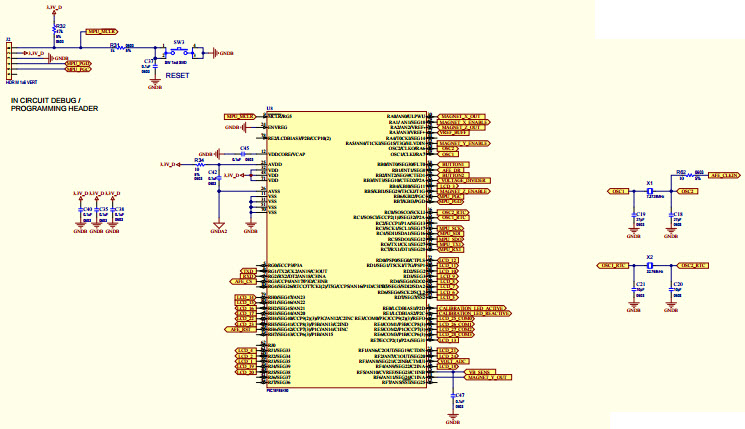

- ARD00385, MCP3911 and PIC18F85K90 Single-Phase Anti-Tamper Energy Meter. The MCP3911 and PIC18F85K90 Single-Phase Anti-Tamper Energy Meter is a fully functional single-phase meter with enhanced capabilities, such as battery backup, RTC and anti-tamper features. The two current channels are measured with the MCP3911 device and the voltage channel is measured with the 12-bit SAR ADC integrated in the microcontroller. This design has two sensors for the current measurements: a current transformer and a shunt. The PIC18F85K90 microcontroller directly drives the LCD and communicates via UART with the MCP2200, offering an isolated USB connection for meter calibration and access to the device power calculations. The system calculates active and reactive energy, active, reactive and apparent power, power factor, RMS current, RMS voltage and the line frequency
Empfohlene Bauteile (12)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
SS49E | Honeywell | Hall Effect Sensors | Hall Effect Sensor 10mA 3.3V/5V 3-Pin Bag | In den Warenkorb | |
|
MCP1703-3302E/DB | Microchip Technology | Linear Regulators | LDO Regulator Pos 3.3V 0.25A 4-Pin(3+Tab) SOT-223 Tube | In den Warenkorb | |
|
PC365NJ0000F | Sharp | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Darlington DC-OUT 4-Pin Mini-Flat T/R | In den Warenkorb | |
|
MCP2200-I/SS | Microchip Technology | Interface Controllers | USB 2.0 to UART Protocol Converter with GPIO UART Interface 3.3V/5V 20-Pin SSOP Tube | In den Warenkorb | |
|
AB26TRB-32.768KHZ-T | Abracon | Crystals | Crystal 0.032768MHz ±20ppm (Tol) 12.5pF FUND 50000Ohm 2-Pin SMD T/R | In den Warenkorb | |
|
MCP1703T-3302E/CB | Microchip Technology | Linear Regulators | LDO Regulator Pos 3.3V 0.25A 3-Pin SOT-23A T/R | In den Warenkorb | |
|
MCP6001T-E/OT | Microchip Technology | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier R-R I/O 6V 5-Pin SOT-23 T/R Automotive AEC-Q100 | In den Warenkorb | |
|
FOD8012AR2 | onsemi | IGBT and MOSFET Gate Driver Photocouplers | Optocoupler Drive Push-Pull 2-CH 3.6V/5.5V 1000V 8-Pin SOIC T/R | In den Warenkorb | |
|
|
FOD8012A | onsemi | IGBT and MOSFET Gate Driver Photocouplers | Optocoupler Drive Push-Pull 2-CH 3.6V/5.5V 1000V 8-Pin SOIC Tube | In den Warenkorb | |
|
PIC18F85K90-I/PTRSL | Microchip Technology | Microcontrollers - MCUs | MCU 8-bit PIC RISC 32KB Flash 2.5V/3.3V/5V Automotive AEC-Q100 80-Pin TQFP Tray | In den Warenkorb | |
|
ABLS-7.3728MHZ-B4-T | Abracon | Crystals | Crystal 7.3728MHz ±30ppm (Tol) ±50ppm (Stability) 18pF FUND 100Ohm 2-Pin HC-49/US SMD T/R | In den Warenkorb | |
|
MCP3911A0-E/SS | Microchip Technology | Analog Front End - AFE | AFE General Purpose 2 ADC 24bit 3.3V Automotive AEC-Q100 20-Pin SSOP Tube | In den Warenkorb | |
