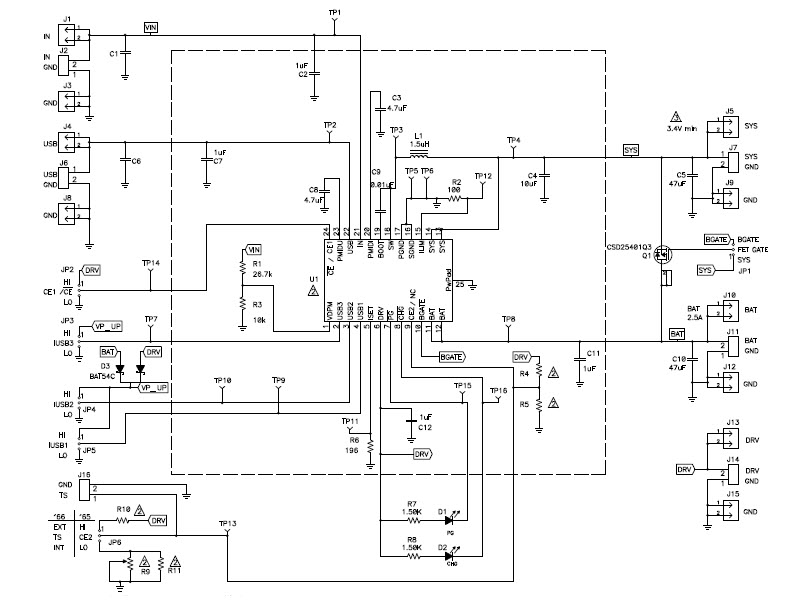

BQ24165EVM, Evaluation Board using BQ24165 single cell Li-Ion battery charger and system power path management
Referenzdesign unter Verwendung des Teils BQ24165YFF von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Netbook
- Portable
- Portable Media Player
Beschreibung
- BQ24165EVM, Evaluation Board using bq24165 synchronous PWM controller, power MOSFETs, input current sensing, high-accuracy current and voltage regulation, charge termination and power path management into a chip scale package. With a high-efficiency, fully integrated, NMOS-NMOS, synchronous buck charger with 1.5-MHz frequency and integrated power FETs for up to 2.5-A charge rate
Haupteigenschaften
-
Battery TypeLithium-Ion|Lithium-Polymer
-
Input Voltage4.2 to 10 V
-
Output Voltage4.2 V
-
Number of Battery Cells1
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
BQ24165YFFT | Texas Instruments | Battery Management ICs | Switching Battery Charger Li-Ion/Li-Pol 2500mA 4.2V 49-Pin DSBGA T/R | In den Warenkorb | |
|
|
BQ24165YFFR | Texas Instruments | Battery Management ICs | Switching Battery Charger Li-Ion/Li-Pol 2500mA 4.2V 49-Pin DSBGA T/R | In den Warenkorb | |
