DAC3174EVM, Evaluation Board using DAC3174, 14-Bit, Dual-Channel, 500 MSPS Digital-to-Analog Converter
Referenzdesign unter Verwendung des Teils DAC3174IRGC von Texas Instruments
Bilder
1 / 8
Zugehörige Dokumente
Für Endprodukte
- Cell Basestation
- Measurement Instruments
- Radar System
- Software Defined Radio
- Test Equipment
Beschreibung

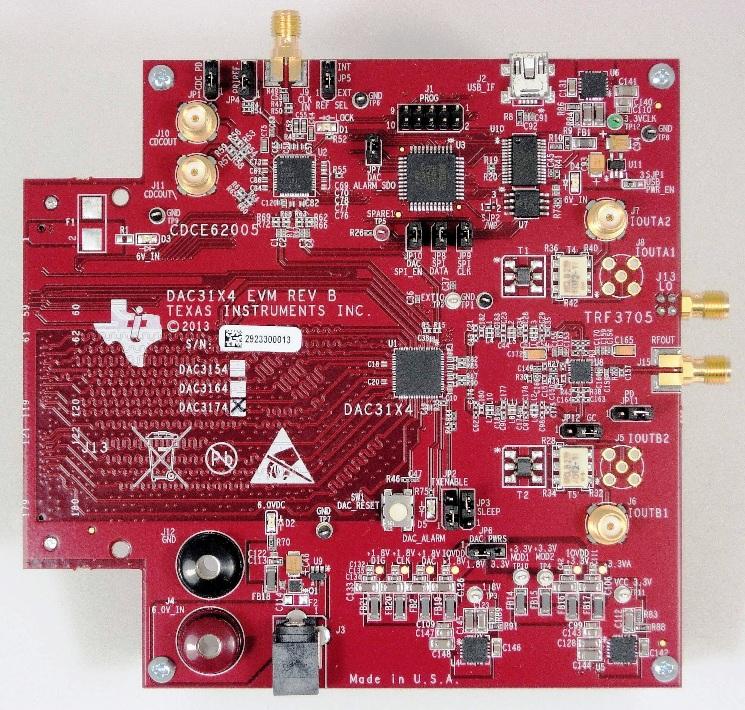

- DAC3174EVM, Evaluation Board using DAC3174, 14-Bit, Dual-Channel, 500 MSPS Digital-to-Analog Converter. The EVM provides a flexible environment to test the DAC3174 under a variety of clock, and input conditions. for ease of use as a complete RF transmit solution the DAC3174EVM includes the CDCE62005 clock generator/jitter cleaner for clocking the DAC3174 as well as a TRF3705, a 400MHz to 4GHz quadrature modulator, for Up-Converting I/Q outputs from the DAC to real signals at RF
Haupteigenschaften
-
DAC Resolution14 Bit
-
DAC Sampling Rate500M SPS
-
Number of Channels2CH
Empfohlene Bauteile (20)
